Baldor

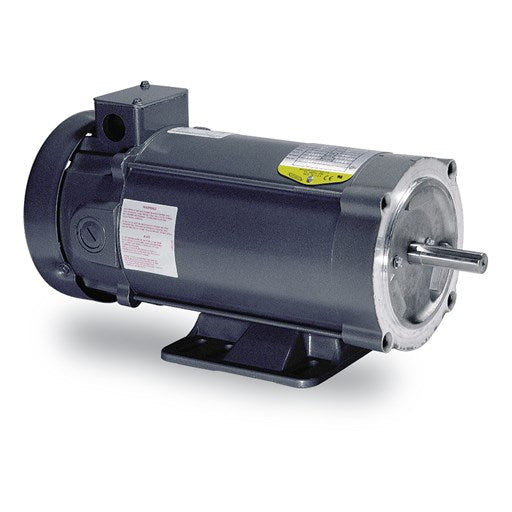

CD3475 Baldor Shunt Wound SCR Drive Motor (3/4 HP, 90 VDC, TEFC , 1750 RPM)

CD3475 Baldor Shunt Wound SCR Drive Motor (3/4 HP, 90 VDC, TEFC , 1750 RPM)

SKU:CD3475

Precio habitual $1,113.55 USD
Precio habitual Precio de oferta $1,113.55 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Baldor Motor CD3475, HP: 3/4, RPM: 1750, VDC: 90, Voltage DC Field: 100/50, Full Load Amps. Arm.: 7.8, Full Load Amps. Field: .6/1.2, NEMA Frame: 56C, : TEFC,

Applications
Conveyors, printing, textile equipment, machine tools(adjustable speeds with constant torque).
Features
TEFC enclosure, shunt wound, Class F insulation. Designed foruse with NEMA TYPE K SCR control, 20:1 constant torque speed range(except where noted). NEMA C-face and removable base (1) (except onexplosion proof models). NEMA 182 and larger have a thermostat (normallyclosed contracts) on the field winding.

Tech Specs

Brand
Baldor
Model Number
CD3475
HP
3/4
Base Speed
1750
Voltage DC Arm.
90
Voltage DC Field
100/50
Full Load Amps. Arm.
7.8
Full Load Amps. Field
.6/1.2
NEMA Frame
56C
Apx. Wt. (lb)
34
Enclosure
TEFC
Type
Shunt Wound SCR Drive Motor
