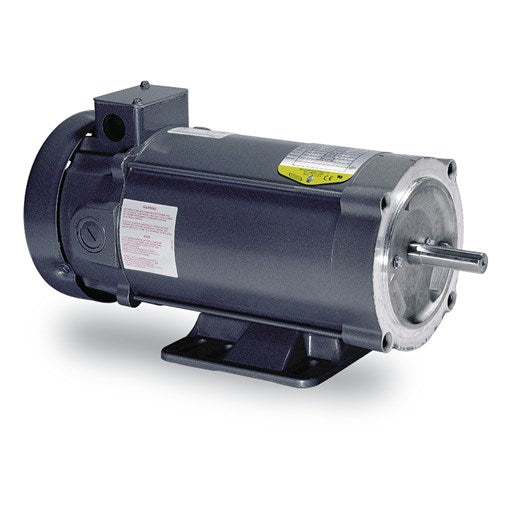

CD3433 Baldor Shunt Wound SCR Drive Motor (1/3 HP, 90 VDC, TEFC , 1750 RPM)
CD3433 Baldor Shunt Wound SCR Drive Motor (1/3 HP, 90 VDC, TEFC , 1750 RPM)
SKU:CD3433
Precio habitual
$787.33 USD
Precio habitual
Precio de oferta
$787.33 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
No se pudo cargar la disponibilidad de retiro
Baldor Motor CD3433, HP: 1/3, RPM: 1750, VDC: 90, Voltage DC Field: 100/50, Full Load Amps. Arm.: 3.4, Full Load Amps. Field: .4/.8, NEMA Frame: 56C, : TEFC,
| Applications |
| Conveyors, printing, textile equipment, machine tools(adjustable speeds with constant torque). |
| Features |
| TEFC enclosure, shunt wound, Class F insulation. Designed foruse with NEMA TYPE K SCR control, 20:1 constant torque speed range(except where noted). NEMA C-face and removable base (1) (except onexplosion proof models). NEMA 182 and larger have a thermostat (normallyclosed contracts) on the field winding. |
Tech Specs | |
Brand |
Baldor |
Model Number |
CD3433 |
HP |
1/3 |
Base Speed |
1750 |
Voltage DC Arm. |
90 |
Voltage DC Field |
100/50 |
Full Load Amps. Arm. |
3.4 |
Full Load Amps. Field |
.4/.8 |
NEMA Frame |
56C |
Apx. Wt. (lb) |
24 |
Enclosure |
TEFC |
Type |
Shunt Wound SCR Drive Motor |
