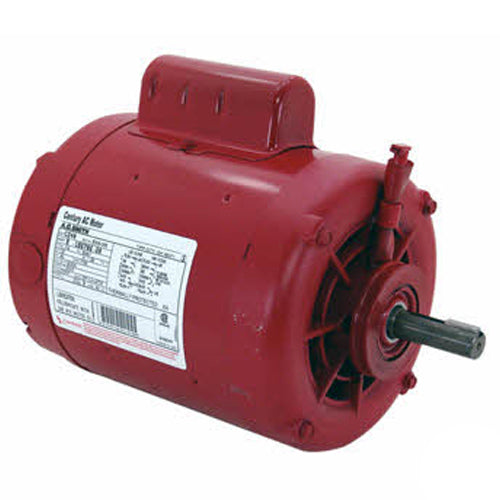

C245 Century and Universal Electric Hot Water Circulator Pump Motor (1 HP, 56Y Frame)
C245 Century and Universal Electric Hot Water Circulator Pump Motor (1 HP, 56Y Frame)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:C245
Precio habitual
$0.00 USD
Precio habitual
Precio de oferta
$0.00 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
Century Motor C245, HP: 1, RPM: 1800, Volts: 230/115, Frame: 56Y, Ref #:
Specifications: |
|
| Model Number | C245 |
| Cross Reference Number | |
| HP | 1 |
| RPM | 1800 |
| Volts | 230/115 |
| Max Amps | 13.0/6.5 |
| Service Factor | 1.25 |
| Frame | 56Y |
| Shaft Dia. & Length | 5/8x1-3/8 |
| Shaft | flat |
| Motor Type | 1 |
| Phase | 1 |
| Enclosure | Dripproof |
| Base | Cushion Rings |
| "C" Dim. | |
| "AG" Dim. | |
| Overload Protector | |
| Insulation Class | |
| Rotation | REV |
| R Hub-Hub | 9.75 |
