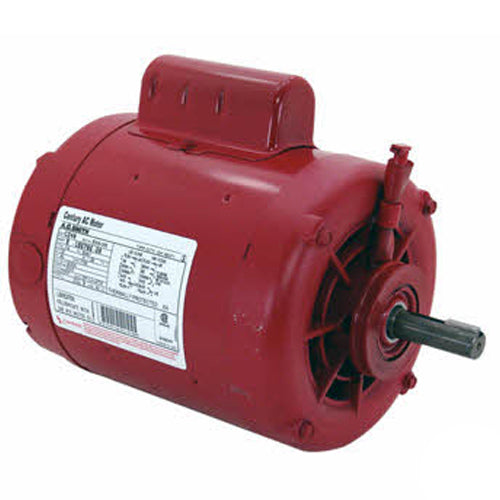

C240 Century and Universal Electric Hot Water Circulator Pump Motor (1/2 HP, 56Y Frame)
C240 Century and Universal Electric Hot Water Circulator Pump Motor (1/2 HP, 56Y Frame)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:C240
Precio habitual
$0.00 USD
Precio habitual
Precio de oferta
$0.00 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
* If you are tax exempt, email your tax form to Sales@kgpowersystems.com
Century Motor C240, HP: 1/2, RPM: 1800, Volts: 115/230, Frame: 56Y, Ref #:
Specifications: |
|
| Model Number | C240 |
| Cross Reference Number | |
| HP | 1/2 |
| RPM | 1800 |
| Volts | 115/230 |
| Max Amps | 7.2/3.6 |
| Service Factor | 1.25 |
| Frame | 56Y |
| Shaft Dia. & Length | 5/8x1-7/8 |
| Shaft | flat |
| Motor Type | 1 |
| Phase | 1 |
| Enclosure | Dripproof |
| Base | Cushion Rings |
| "C" Dim. | |
| "AG" Dim. | |
| Overload Protector | |
| Insulation Class | |
| Rotation | REV |
| R Hub-Hub | 8.94 |
