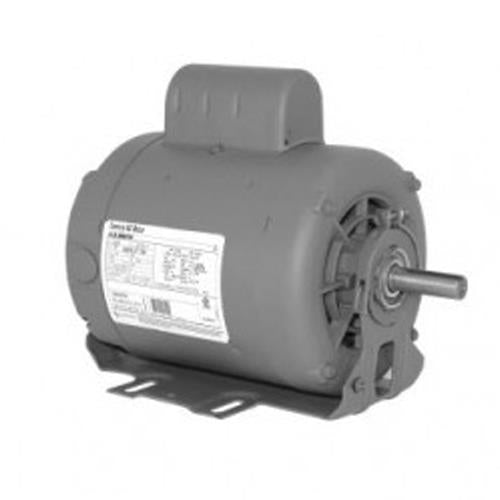

C105L Century Capacitor Start Resilient Base Motor (1/3 HP, 115/230 Volts, 48 Frame, 1725 RPM)

C105L Century Capacitor Start Resilient Base Motor (1/3 HP, 115/230 Volts, 48 Frame, 1725 RPM)

C105L

$0.00 USD
$0.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
C105L Century Capacitor Start Resilient Base Motor (1/3 HP, 115/230 Volts, 48 Frame, 1725 RPM)

Applications
Compressors, pumps, conveyors, milking machines, blowers, fans
Features
Class A and B Insulation; 2, 4 and 6 Pole; High Start Torque; 40?C Ambient; Open Construction; 60 Hz; Reversible; Sleeve & Ball Bearing

Tech Specs.

Brand
A.O. Smith
Model Number
C105L
HP
1/3
RPM
1725
Volts
115/230
Full Load Amps
5.7/2.8
Service Factor
1.35
Bearings
Ball
Frame
48
Apx. Wt. (lb)
30
Enclosure
Open D.P.
Aprox "C"
9.8
Dim "AG"
8.3
Protector
None
Type
Capacitor Start Resilient Base Motor

Support Documents (pdf)

Product Literature
