Berkeley Pumps

BVM15-10-204 Berkeley Vertical Multi-Stage Pump (20 HP, 10 Stages, TEFC Enclosure, EPDM Flange, 3 Phase, 230V/460V Voltage, Cast Iron)

BVM15-10-204 Berkeley Vertical Multi-Stage Pump (20 HP, 10 Stages, TEFC Enclosure, EPDM Flange, 3 Phase, 230V/460V Voltage, Cast Iron)

👁️ [COUNT] People are currently viewing this product.

BVM15-10-204

$9,031.62 USD
$16,773.00 USD $9,031.62 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

Berkeley BVM15-10-204, Vertical Multistage Centrifugal Pumps Type, BVM15 Series, 20 HP, 10 Stages, TEFC Enclosure, EPDM Flange, 3 Phase, 230V/460V Voltage, Cast Iron Material,

Applications

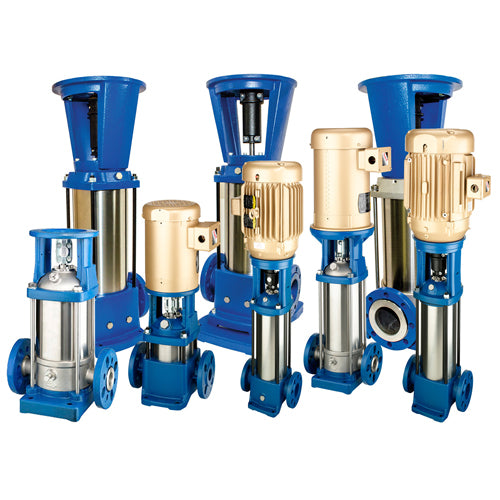

The Berkeley BVM Series are non-self priming vertical multistage pump of in-line design, with flange, NPT and grooved connections and stainless steel stage construction. Premium efficiency pump motors are available. Pump stub shaft and motor shaft of the NEMA standard motor are directly close coupled. Applications: Water supply, Pressure boosting systems, Water treatment/filtration, Irrigation, High pressure washes, Liquid transfer, Firefighting system, Boiler feed.
Features
Flanged, NPT or grooved connections
Cartridge Mechanical Seal - can be replaced easily without dismantling the pump
Continuous-duty, high-efficiency designs
Heavy-duty cast motor bracket insures proper motor alignment
High-thrust Open Drip or TEFC enclosure motor options
Versatility in performance and design
Retrofits easily in existing and new installations, reducing valuable downtime
Lower operating costs

Specifications

Brand
Berkeley
Catalog Number
BVM15-10-204
Type
Vertical Multistage Centrifugal Pumps
Series
BVM15
HP
20
Stages
10
Enclosure
TEFC
Flange
EPDM
Phase
3
Voltage
230V/460V
Material
Cast Iron
S.F
1.15
Hz
60
Notes
See Support Documents

Support Documents (pdf)
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • ALL IMAGES SHOWN ON OUR WEBSITE ARE FOR ILLUSTRATION PURPOSE ONLY AND MAY NOT BE AN EXACT REPRESENTATION OF THE PRODUCT. ACTUAL PRODUCTS MAY VARY FROM THE IMAGES SHOWN.
