BVM1-8-100 Berkeley Vertical Multistage Pumps (1 HP, 1 Phase, 8 Stages, 115/208-230 Voltage, EPDM Flange, Cast Iron, Pump End ONLY)

Berkeley BVM1-8-100, Vertical Multi-Stage Pumps Type, 1 HP, 1 Phase, 8 Stages, 115/208-230 Voltage, EPDM Flange, Cast Iron, Pump End ONLY Enclosure,

Applications
Water supply, Pressure boosting systems, Water treatment/filtration, Irrigation, High pressure washes, Liquid transfer, Firefighting systems, Boiler feed
Features

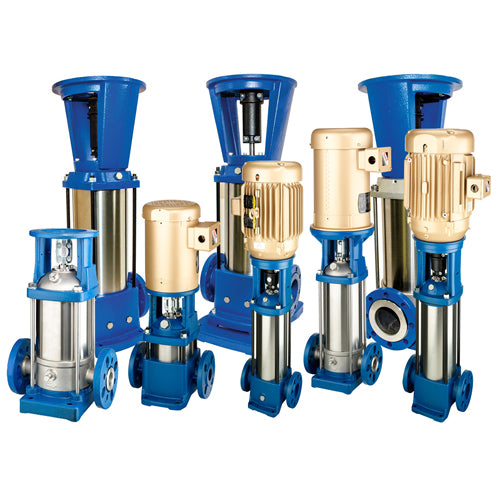

The BVM, BVMI and BVMX are vertical multistage pumps with flanged/NPT or grooved connections.
HIGH HYDRAULIC EFFICIENCY, MOTOR DESIGNED TO NEMA STANDARDS
Stage construction with stainless steel impellers, chambers and pressure casing. Pump stub shaft and motor shaft of the NEMA-standard motor are directly close coupled.
All pumps are equipped with a cartridge type mechanical seal for easy maintenance.
High-thrust Open Drip or TEFC enclosure motor options
Versatility in performance and design
Retrofits easily in existing and new installations, reducing valuable downtime
Continuous-duty, high-efficiency designs
Non-self-priming/gravity feed, industrial pump with high pressure and low output.

Specifications
Brand	Berkeley
Catalog Number	BVM1-8-100
Type	Vertical Multi-Stage Pumps
Series	BVM1
HP	1
Phase	1
Stages	8
Voltage	115/208-230
Flange	EPDM
Material	Cast Iron
Enclosure	Pump End ONLY
Nominal Flow	10.4 GPM
Flow Range	1-20 GPM
Max Pressure	360 PSI
Flange/NPT	1-1/4"
Notes	See Support Documents Below

Support Documents (pdf)
Notes
Owners Manual and Parts
