Berkeley Pumps

BVM1-7-100 Berkeley Vertical Multistage Pumps (0.75 HP, 1 Phase, 7 Stages, 115/208-230 Voltage, EPDM Flange, Cast Iron, Pump End ONLY)

BVM1-7-100 Berkeley Vertical Multistage Pumps (0.75 HP, 1 Phase, 7 Stages, 115/208-230 Voltage, EPDM Flange, Cast Iron, Pump End ONLY)

BVM1-7-100

$1,238.46 USD
$1,238.46 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Berkeley BVM1-7-100, Vertical Multi-Stage Pumps Type, 0.75 HP, 1 Phase, 7 Stages, 115/208-230 Voltage, EPDM Flange, Cast Iron, Pump End ONLY Enclosure,

Applications
Water supply, Pressure boosting systems, Water treatment/filtration, Irrigation, High pressure washes, Liquid transfer, Firefighting systems, Boiler feed
Features

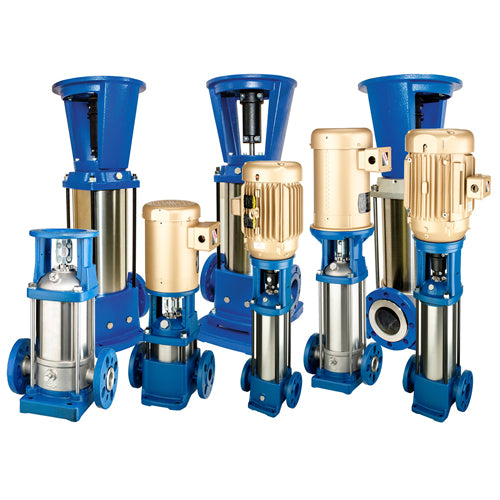

The BVM, BVMI and BVMX are vertical multistage pumps with flanged/NPT or grooved connections.
HIGH HYDRAULIC EFFICIENCY, MOTOR DESIGNED TO NEMA STANDARDS
Stage construction with stainless steel impellers, chambers and pressure casing. Pump stub shaft and motor shaft of the NEMA-standard motor are directly close coupled.
All pumps are equipped with a cartridge type mechanical seal for easy maintenance.
High-thrust Open Drip or TEFC enclosure motor options
Versatility in performance and design
Retrofits easily in existing and new installations, reducing valuable downtime
Continuous-duty, high-efficiency designs
Non-self-priming/gravity feed, industrial pump with high pressure and low output.

Specifications

Brand
Berkeley
Catalog Number
BVM1-7-100
Type
Vertical Multi-Stage Pumps
Series
BVM1
HP
0.75
Phase
1
Stages
7
Voltage
115/208-230
Flange
EPDM
Material
Cast Iron
Enclosure
Pump End ONLY
Nominal Flow
10.4 GPM
Flow Range
1-20 GPM
Max Pressure
360 PSI
Flange/NPT
1-1/4"
Notes
See Support Documents Below

Support Documents (pdf)
