Berkeley Pumps

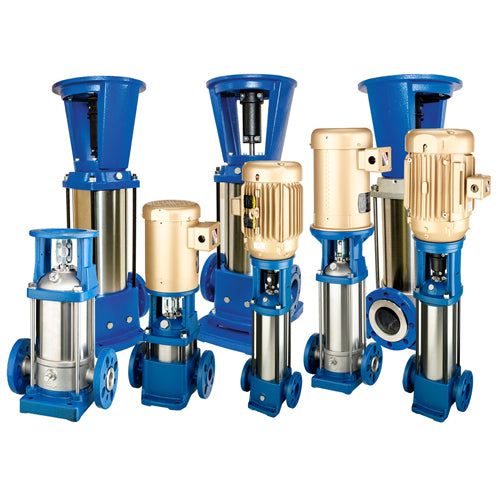

BVM1-6-404 Berkeley Vertical Multistage Pumps (0.75 HP, 3 Phase, 6 Stages, 208-230V/460V Voltage, Viton Flange, Cast Iron, TEFC Enclosure, )

BVM1-6-404 Berkeley Vertical Multistage Pumps (0.75 HP, 3 Phase, 6 Stages, 208-230V/460V Voltage, Viton Flange, Cast Iron, TEFC Enclosure, )

[COUNT] shoppers are looking at this right now

BVM1-6-404

$2,075.36 USD
$3,706.00 USD $2,075.36 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

View price in cart
Berkeley BVM1-6-404, Vertical Multi-Stage Pumps Type, 0.75 HP, 3 Phase, 6 Stages, 208-230V/460V Voltage, Viton Flange, Cast Iron, TEFC Enclosure,

Applications
Water supply, Pressure boosting systems, Water treatment/filtration, Irrigation, High pressure washes, Liquid transfer, Firefighting systems, Boiler feed
Features
The BVM, BVMI and BVMX are vertical multistage pumps with flanged/NPT or grooved connections.
HIGH HYDRAULIC EFFICIENCY, MOTOR DESIGNED TO NEMA STANDARDS
Stage construction with stainless steel impellers, chambers and pressure casing. Pump stub shaft and motor shaft of the NEMA-standard motor are directly close coupled.
All pumps are equipped with a cartridge type mechanical seal for easy maintenance.
High-thrust Open Drip or TEFC enclosure motor options
Versatility in performance and design
Retrofits easily in existing and new installations, reducing valuable downtime
Continuous-duty, high-efficiency designs
Non-self-priming/gravity feed, industrial pump with high pressure and low output.

Specifications

Brand
Berkeley
Catalog Number
BVM1-6-404
Type
Vertical Multi-Stage Pumps
Series
BVM1
HP
0.75
Phase
3
Stages
6
Voltage
208-230V/460V
Flange
Viton
Material
Cast Iron
Enclosure
TEFC
Nominal Flow
10.4 GPM
Flow Range
1-20 GPM
Max Pressure
360 PSI
Flange/NPT
1-1/4"
Notes
See Support Documents Below

Support Documents (pdf)
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
Ver todos los detalles
