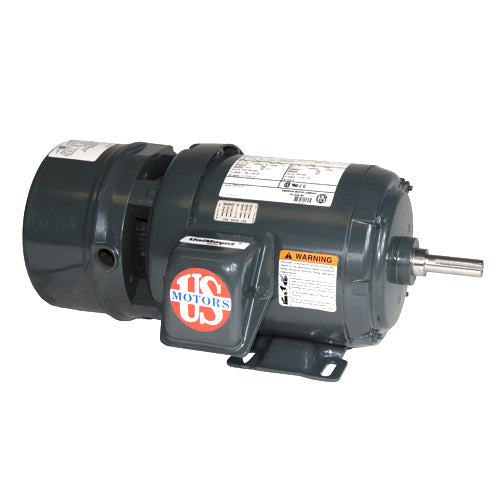

BMU32P2DCR US Motor Unimount Brakemotor (1.5 HP, TEFC, 1755 RPM, C-Face, Footless)
BMU32P2DCR US Motor Unimount Brakemotor (1.5 HP, TEFC, 1755 RPM, C-Face, Footless)
[COUNT] shoppers are looking at this right now
No reviews
SKU:FR31
Precio habitual
$0.00 USD
Precio habitual
$0.00 USD
Precio de oferta
$0.00 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
BMU32P2DCR US Motor Unimount Brakemotor (1.5 HP, TEFC, 1755 RPM, C-Face, Footless)
| Model_Number: | FR31 |
| Cat # | BMU32P2DCR |
| PRODUCT NAME: | 1.5 HP - TEFC - 1755 |
| PHASETYPE: | 3_PHASE |
| MOTOR ENCLOSURE: | TEFC |
| HORSEPOWER: | 1.5 |
| KILOWATTS: | 1.1 |
| POLES: | 4 |
| NUMBER SPEEDS: | 1 |
| RPM: | 1755 |
| RPM 2: | 1755 |
| RPM 3: | 1745 |
| RPM 4: | 1440 |
| RPM 5: | 1440 |
| HERTZ: | 60 |
| HERTZ 2: | 50 |
| VOLTS PRIMARY: | 208-230/460 |
| VOLTS : | 460 |
| VOLTS 2: | 230 |
| VOLTS 3: | 208 |
| VOLTS 4: | 380 |
| VOLTS 5: | 190 |
| FRME : | 145 |
| SHAFT CODE: | TC |
| MOUNTING: | HORZ-FOOTLESS |
| ASSEMBLY POSITION: | NA |
| MOTOR TYPE: | UTEF |
| OPPOSITE END BEARING: | 6203-2Z-J/C3 |
| SHAFT END BEARING: | 6205-2Z-J/C3 |
| AMBIENT: | 40 |
| ROTATION: | DUAL |
| SERVICE FACTOR: | 1.25 |
| STARTCAPMFD: | N\A |
| SHIPPING WEIGHT: | 35 |
| BREAKDOWN TORQUE: | 501 |
| BREAKDOWN TORQUE UOM: | PERCENT OF FLT |
| LOCKED ROTOR TORQUE: | 380 |
| LOCKED ROTOR TORQUE UOM: | PERCENT OF FLT |
| INSULATION CLASS: | F |
| KVA CODE LETTER: | M |
| LOCKED ROTOR AMPS: | 19.8 |
| NEMA NOMINAL EFFICIENCY: | 86.5 |
| FULL LOAD AMPS PRIMARY: | 4.5-4.3/2.1 |
| SERVICE FACTOR AMPS PRIMARY: | 5.4-5/2.5 |
