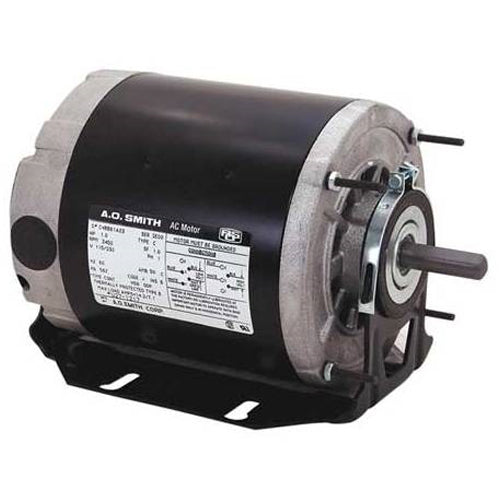

BF2024 Century Belt Drive and Blower Motor, Split Phase (1/4 HP, 48/56 Frame, 1725 RPM)

BF2024 Century Belt Drive and Blower Motor, Split Phase (1/4 HP, 48/56 Frame, 1725 RPM)

BF2024

$0.00 USD
$0.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Model Number: BF2024, HP: 1/4, RPM: 1725, Volts: 115/208-230, Frame: 48/56, Enclosure: Open, Type: Split Phase Resilient Base Motor,

Applications
Belt Drive Fans and Blowers, HVAC
Features
Class B Ins. (Class A see notes); Reversible; Continuous Duty; Sleeve & Ball Bearing; Energy Efficient $ (see notes); 60 HZ; Open and Encloseds

Tech Specs.

Brand
A.O. Smith
Model Number
BF2024
HP
1/4
RPM
1725
Volts
115/208-230
Full Load Amps
5.2/2.6
Service Factor
1.35
Frame
48/56
Enclosure
Open
Apx. Wt. (lb)
14
Phase
Split Phase
Protector
Auto
Type
Split Phase Resilient Base Motor
Aprox "C"
9.2
Dim "AG"
7.5
Motor Mount
Resilient Base
BF2024
