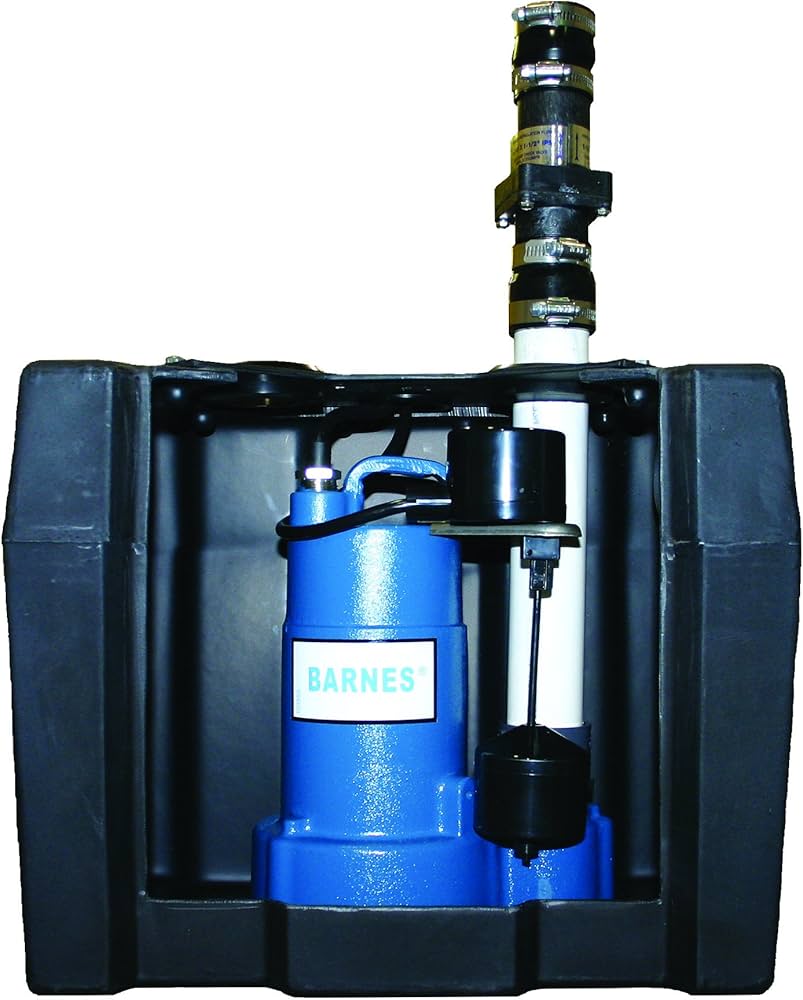

Barnes SP33LT Laundry Tray Sump Pump System

This complete preassembled Laundry Tray system is designed for above the floor “grey water” sump applications. Manufactured with high quality polyethylene resins and tested to industry standards.  Ideal for residential and light industrial sump applications.

Package includes

• Pump, model SP33VF
• 12" x 14" x 16" basin
• 1.5" vent & discharge flanges
• 1.5" x 16" discharge piping & adapter
• Check valve

Package Features

• All components are durable, corrosion-resistant polyethylene
• Box and cover have a matching textured finish
• 1-1/2" threaded "spin weld" insert for the inlet
• Grommet discharge, vent and cord seals
• Accommodates 1-1/2" discharge piping
• Stainless steel bolts and encapsulated aluminum inserts
• Large 11 gallon capacity
• 1/8" thick black closed cell foam gasket
• Size: 12" x 16" x 14"
• Wall thickness 3/16"

Pump SP33VF Features

• 1/3 HP, 120V, single phase
• 1-1/2" NPT discharge
• Automatic, includes piggy back vertical float switch
• Top suction design
• Cast iron motor housing
• Magnets activate switch as float rises and falls
• Permanent split capacitor motor for reliable, high performance, longer motor life, greater starting torque, and lower amp draw
• Dual single row ball bearings
• Thermoplastic impeller

Applications

• Laundry trays
• Wet bars
• Dehumidifiers
• Water softeners
• Air conditioner condensation
