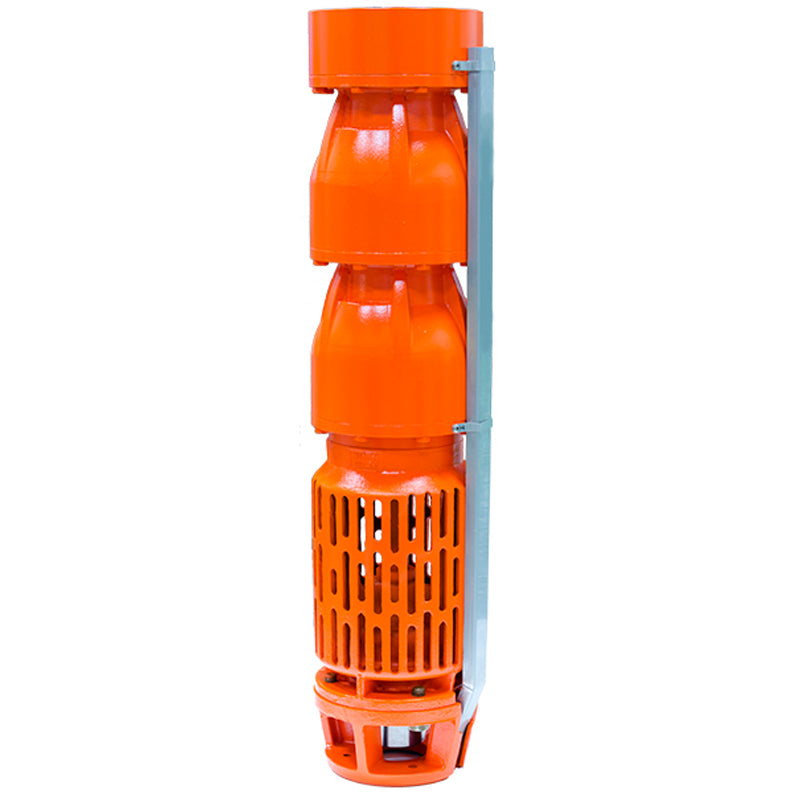

B87138 Berkeley 10" Submersible Pump End Only (200 HP, 2 Stages, 1750 GPM, 8" NPT Discharge, 10" Motor Diameter, 10TMH Series)
B87138 Berkeley 10" Submersible Pump End Only (200 HP, 2 Stages, 1750 GPM, 8" NPT Discharge, 10" Motor Diameter, 10TMH Series)
SKU:B87138
Precio habitual
$4,487.18 USD
Precio habitual
$8,750.00 USD
Precio de oferta
$4,487.18 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
No se pudo cargar la disponibilidad de retiro
Berkeley B87138, Subturbine Pumps Type, 10TMH Series, 200 HP, 2 Stages, 1750 GPM, 8" NPT Discharge, 10" Motor Diameter,
| Applications | |
| The 10TMH pump series provides more performance, more coverage, and better materials to deliver maximum performance and longevity under the toughest and most demanding operating conditions. | |
| Features | |
| Discharge Ductile Iron (8), for higher strength and better wear resistance. | |
| Sand Collar 316 Stainless Steel, for better corrosion resistance. | |
| O-Ring Seal on the Bowls Creates a better sealing surface, and spreads the load across the flange of the bowl. | |
| Bowls Class 30 Cast Iron, heavy-walled construction incorporates precision hydraulic design for maximum efficiency and performance. Coated internal passageways on the 10TMH series increases overall pump efficiency and performance. | |
| Bowl Bearing Options Rubber (standard), Bronze (optional), Vesconite (optional)* Covers most application needs. | |
| Collets 416 Stainless Steel, provides increased durability and better corrosion resistance. | |
| Investment Cast Impellers 316 Stainless Steel High corrosion resistance, high strength, precision cast and machined for superior performance. | |
| Suction Bracket Ductile Iron, With integrated, cast-in screen. Eliminates issues caused by collapsed or missing suction | |
| Motor Adapters Ductile Iron, Separate adapters available to fit all 8 and 10 submersible motors, up to 250hp. | |
Specifications | |
Brand |
Berkeley |
Catalog Number |
B87138 |
Type |
Subturbine Pumps |
Series |
10TMH |
Pump Model |
10TMH200-1750 |
HP |
200 |
Stages |
2 |
GPM |
1750 |
Discharge |
8" NPT |
Impeller |
Stainless Steel |
Shaft |
416 SS |
Motor Diameter |
10" |
Bowls |
Cast Iron |
Motor |
Not Included |
Notes |
See Support Documents |
Support Documents (pdf) | ||||
