Berkeley Pumps

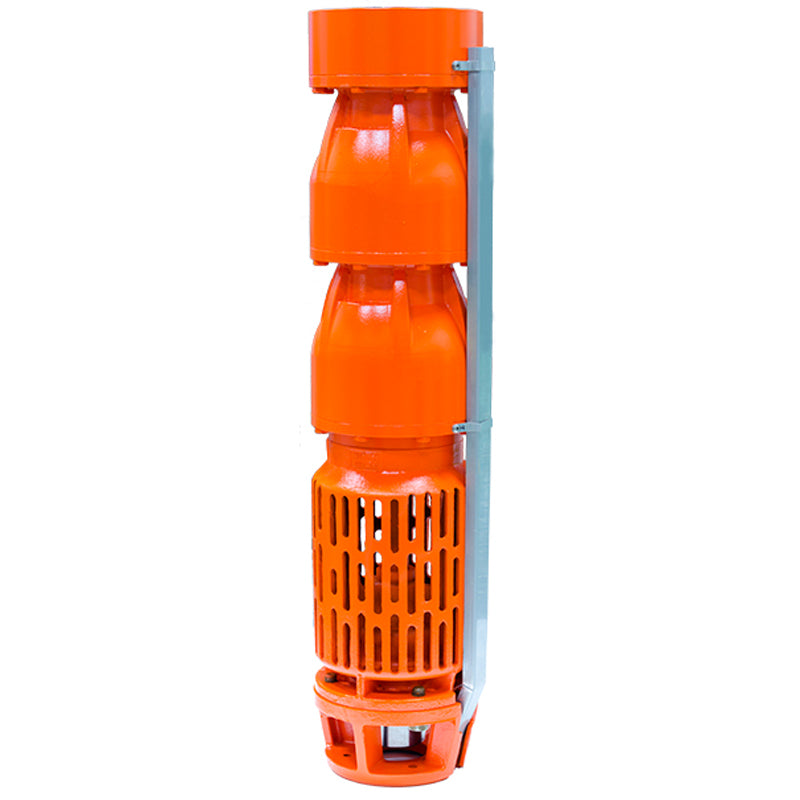

B87083 Berkeley 10" Submersible Pump End Only (150 HP, 3 Stages, 750 GPM, 8" NPT Discharge, 8" Motor Diameter, 10TMH Series)
B87083 Berkeley 10" Submersible Pump End Only (150 HP, 3 Stages, 750 GPM, 8" NPT Discharge, 8" Motor Diameter, 10TMH Series)
No reviews
SKU:B87083
Precio habitual
$5,170.26 USD
Precio habitual
Precio de oferta
$5,170.26 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
No se pudo cargar la disponibilidad de retiro
Berkeley B87083, Subturbine Pumps Type, 10TMH Series, 150 HP, 3 Stages, 750 GPM, 8" NPT Discharge, 8" Motor Diameter,
| Applications | |
| The 10TMH pump series provides more performance, more coverage, and better materials to deliver maximum performance and longevity under the toughest and most demanding operating conditions. | |
| Features | |
| Discharge Ductile Iron (8), for higher strength and better wear resistance. | |
| Sand Collar 316 Stainless Steel, for better corrosion resistance. | |
| O-Ring Seal on the Bowls Creates a better sealing surface, and spreads the load across the flange of the bowl. | |
| Bowls Class 30 Cast Iron, heavy-walled construction incorporates precision hydraulic design for maximum efficiency and performance. Coated internal passageways on the 10TMH series increases overall pump efficiency and performance. | |
| Bowl Bearing Options Rubber (standard), Bronze (optional), Vesconite (optional)* Covers most application needs. | |
| Collets 416 Stainless Steel, provides increased durability and better corrosion resistance. | |
| Investment Cast Impellers 316 Stainless Steel High corrosion resistance, high strength, precision cast and machined for superior performance. | |
| Suction Bracket Ductile Iron, With integrated, cast-in screen. Eliminates issues caused by collapsed or missing suction | |
| Motor Adapters Ductile Iron, Separate adapters available to fit all 8 and 10 submersible motors, up to 250hp. | |
Specifications | |
Brand |
Berkeley |
Catalog Number |
B87083 |
Type |
Subturbine Pumps |
Series |
10TMH |
Pump Model |
10TMH150-750 |
HP |
150 |
Stages |
3 |
GPM |
750 |
Discharge |
8" NPT |
Impeller |
Stainless Steel |
Shaft |
416 SS |
Motor Diameter |
8" |
Bowls |
Cast Iron |
Motor |
Not Included |
Notes |
See Support Documents |
Support Documents (pdf) | ||||
