Berkeley Pumps

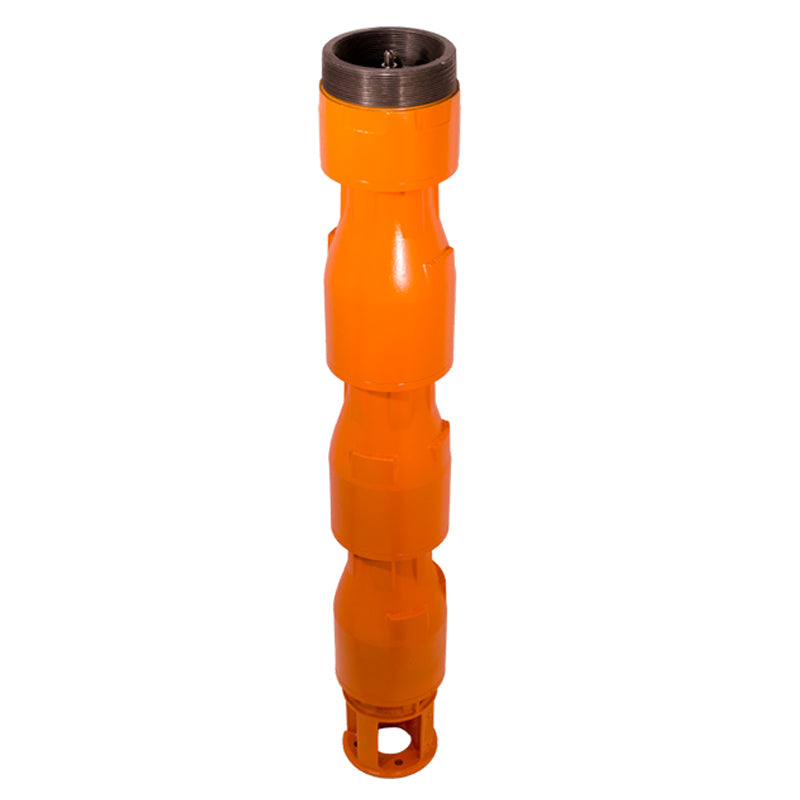

B87034 Berkeley 8" Submersible Pump End Only (7.5 HP, 1 Stages, 230 GPM, 5/6 NPT Discharge, 7TMH Series)

B87034 Berkeley 8" Submersible Pump End Only (7.5 HP, 1 Stages, 230 GPM, 5/6 NPT Discharge, 7TMH Series)

SKU:B87034

Precio habitual $2,240.00 USD
Precio habitual Precio de oferta $2,240.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Berkeley B87034, 8" Submersible Pump Ends Type, 7TMH Series, 7.5 HP, 1 Stages, 230 GPM, 5/6 NPT Discharge,

Applications
7TMH Subturbine Series.The 7TMH pump series features abrasion and corrosion resistant materials for maximum performance and longevity under the toughest operating conditions, and delivers industry-leading efficiencies and head per stage.
Features
Discharge Ductile iron ASTM 536-84: Threaded with large wrench flats and sized for the pumps flow range
Upthrust nut / screw - 304 Stainless Steel: Factory pre-set upthrust screw is retained by a stainless steel locknut, providing maximum upthrust protection.
Discharge bearing - Vesconite: Low friction, no water swell, long life. Specific for water-immersed applications, clean or dirty
Shaft - 416 stainless steel: Precision ground and polished for reduced running friction and increased service life
Impeller - 304 stainless steel, investment cast: Smooth and efficient performance, long life
Bowls - Class 30 cast iron: Heavy-walled construction incorporates precision hydraulic design for maximum efficiency and performance. Coated internal passageways on the 7TMH series increases overall pump efficiency and performance.
Isolator bearings - neoprene: Unique design channels abrasives away from the stainless steel shaft bearing journal.
Lead guard - 302 stainless steel: Protects the motor leads across the full length of the pump (not shown)
Suction bracket - Ductile iron: ASTM 536-84 Available with either 6 or 8 intake adapters. Designed to effectively divert debris away from the spline engagement area, maximizing durability.
Suction screen 304 stainless steel: Form fitted, provides corrosion resistance, and prevents particulates larger than .19 (4.8 mm) from entering the pump (not shown).
Sand boot - Buna-N (nitrile rubber): Protects coupling and motor splines from abrasive wear.

Specifications

Brand
Berkeley
Catalog Number
B87034
Type
8" Submersible Pump Ends
Series
7TMH
Pump Model
7TMH7.5-230
HP
7.5
Stages
1
GPM
230
Discharge
5/6 NPT
Motor Diameter
6 Flanged
Shaft
416 SS
Impeller
Stainless Steel
Bowls
Cast Iron
Motor
Not Included
Notes
See Support Documents

Support Documents (pdf)
