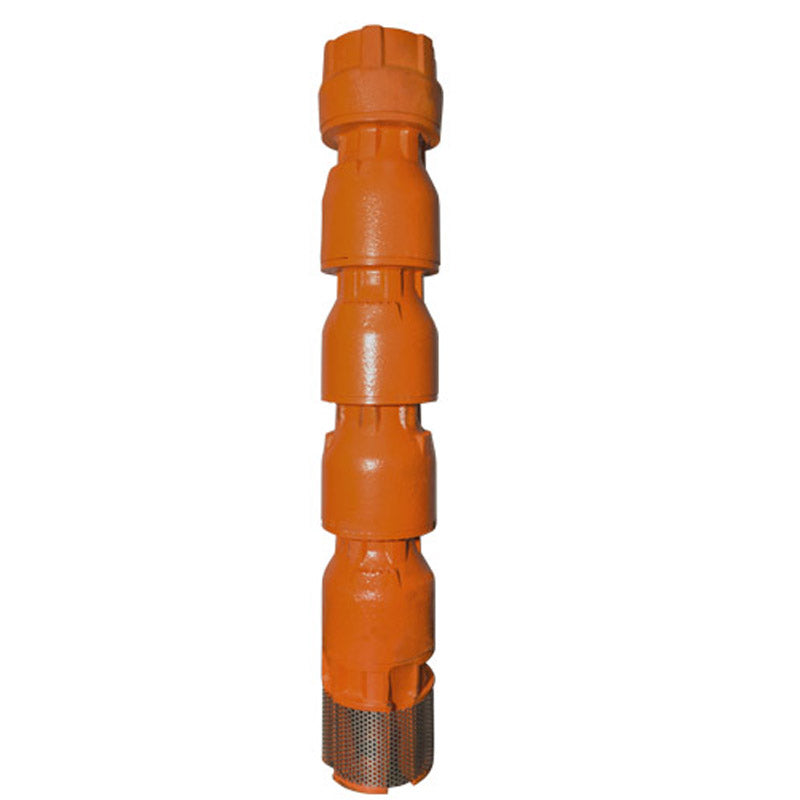

B86832 Berkeley 6" Submersible Pump End Only (10 HP, 8 Stages, 75 GPM, 3 NPT Discharge, 5TMH Series)

B86832 Berkeley 6" Submersible Pump End Only (10 HP, 8 Stages, 75 GPM, 3 NPT Discharge, 5TMH Series)

SKU:B86832

Precio habitual $3,510.77 USD
Precio habitual Precio de oferta $3,510.77 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Berkeley B86832, 6" Submersible Pumps Type, 5TMH Series, 10 HP, 8 Stages, 75 GPM, 3 NPT Discharge,

Applications
The 5TMH pump series features abrasion and corrosion resistant materials for maximum performance and longevity under the toughest operating conditions, and delivers industry-leading efficiencies and head per stage. The 5TMH series consists of five new hydraulic designs for well casings with an ID smaller than 6".
Features
Factory pre-set upthrust screw is retained by a stainless steel lockout, providing maximum upthrust protection
Threaded discharge with large wrench flats and sized for the pumps flow range
Low friction discharge bearing, no water swell, long life. Specific for water-immersed applications, clean or dirty
Precision ground and polished shaft for reduced running friction and increased service life
Smooth and efficient impeller provides performance and long life
Heavy-walled bowls incorporate precision hydraulic design for maximum efficiency and performance.
Lead guard protects the motor leads across the full length of the pump
Uniquely designed isolator bearings channel abrasives away from the stainless steel shaft bearing journal
Suction bracket machined for both 4 and 6 motor registers. Designed to effectively divert debris away from the spline engagement area, maximizing durability
Form fitted suction screen provides corrosion resistance, and prevents particulates larger than .19 (4.8 mm) from entering the pump
Fully machined motor coupling for positive fit; highly corrosion resistant

Specifications

Brand
Berkeley
Catalog Number
B86832
Type
6" Submersible Pumps
Series
5TMH
Pump Model
5TMH10-75
HP
10
Stages
8
GPM
75
Discharge
3 NPT
Motor Diameter
Dual Flanged 4 & 6
Shaft
416 SS Shaft
Impeller
304 Stainless Steel
Bowls
Class 30 Cast Iron
Motor
Not Included
Notes
See Support Documents

Support Documents (pdf)
