B86321 Berkeley Submersible Turbine Pump - End Only (10 HP, 3 Stages, 140 GPM, 4" NPT Discharge, 6TMH Series)

Name: B86321 Berkeley Submersible Turbine Pump - End Only (10 HP, 3 Stages, 140 GPM, 4" NPT Discharge, 6TMH Series)
Brand: Berkeley Pumps
SKU: B86321
Price: 2697.79 USD
Availability: InStock

SKU:B86321

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Cantidad

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.

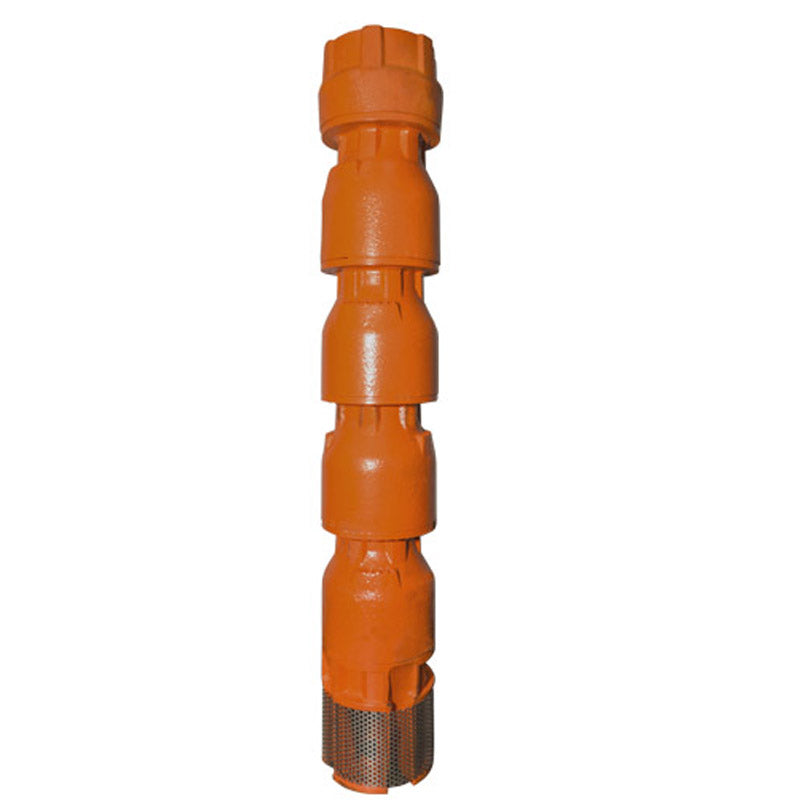

Berkeley B86321, Submersible Turbine Pump, 6TMH Series, 10 HP, 3 Stages, 140 GPM, 4" NPT Discharge,

Applications
The 6TMH pump series features abrasion and corrosion resistant materials for maximum performance and longevity under the toughest operating conditions, and delivers industry-leading efficiencies and head per stage.

Features
Factory pre-set upthrust screw is retained by a stainless steel lockout, providing maximum upthrust protection
Threaded discharge with large wrench flats and sized for the pumps flow range
Low friction discharge bearing, no water swell, long life. Specific for water-immersed applications, clean or dirty
Precision ground and polished shaft for reduced running friction and increased service life
Smooth and efficient impeller provides performance and long life
Heavy-walled bowls incorporate precision hydraulic design for maximum efficiency and performance.
Lead guard protects the motor leads across the full length of the pump
Uniquely designed isolator bearings channel abrasives away from the stainless steel shaft bearing journal
Suction bracket machined for both 4 and 6 motor registers. Designed to effectively divert debris away from the spline engagement area, maximizing durability
Form fitted suction screen provides corrosion resistance, and prevents particulates larger than .19 (4.8 mm) from entering the pump
Fully machined motor coupling for positive fit; highly corrosion resistant

Specifications
Brand	Berkeley
Catalog Number	B86321
Type	7" Submersible Pumps
Series	6TMH
Pump Model	6TMH10-140
HP	10
Stages	3
GPM	140
Discharge	4" NPT
Motor Diameter	Dual Flanged 4 & 6
Shaft	416 SS
Impeller	304 Stainless Steel
Bowls	Class 30 Cast Iron
Motor	Not Included
Notes	See Support Documents

Support Documents (pdf)
Notes
Technical Notes
Owners Manual
