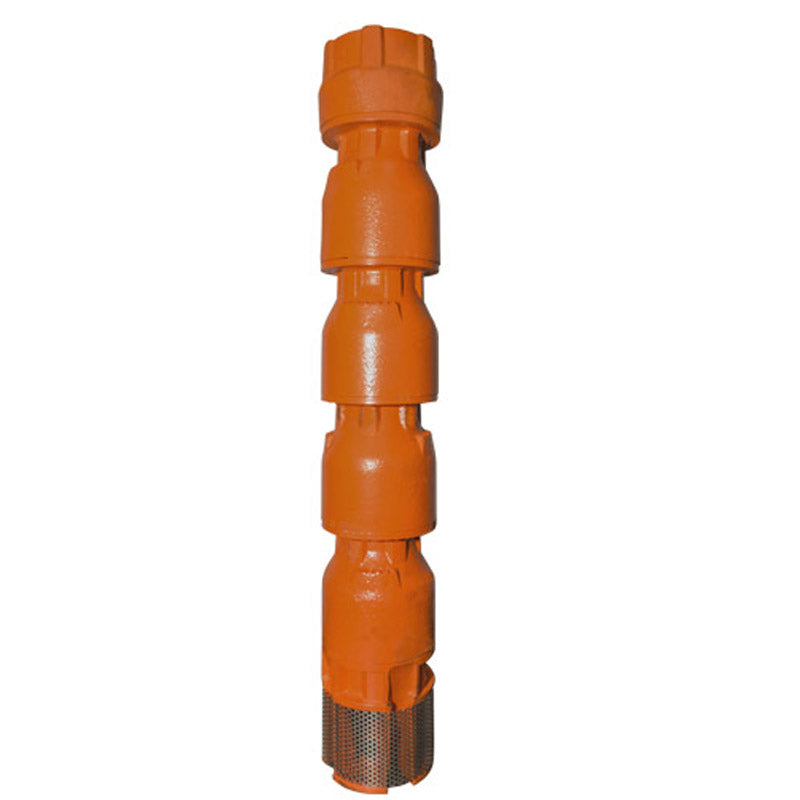

B86260 Berkeley Submersible Turbine Pump - End Only (7.5 HP, 1 Stages, 450 GPM, 4 NPT Discharge, 6TMH Series)
B86260 Berkeley Submersible Turbine Pump - End Only (7.5 HP, 1 Stages, 450 GPM, 4 NPT Discharge, 6TMH Series)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:B86260
Precio habitual
$1,756.71 USD
Precio habitual
$3,262.00 USD
Precio de oferta
$1,756.71 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
Berkeley B86260, Submersible Turbine Pump, Series, 7.5 HP, 1 Stages, 450 GPM, 4 NPT Discharge,
| Applications | |
| The 6TMH pump series features abrasion and corrosion resistant materials for maximum performance and longevity under the toughest operating conditions, and delivers industry-leading efficiencies and head per stage. | |
| Features | |
| Factory pre-set upthrust screw is retained by a stainless steel lockout, providing maximum upthrust protection | |
| Threaded discharge with large wrench flats and sized for the pumps flow range | |
| Low friction discharge bearing, no water swell, long life. Specific for water-immersed applications, clean or dirty | |
| Precision ground and polished shaft for reduced running friction and increased service life | |
| Smooth and efficient impeller provides performance and long life | |
| Heavy-walled bowls incorporate precision hydraulic design for maximum efficiency and performance. | |
| Lead guard protects the motor leads across the full length of the pump | |
| Uniquely designed isolator bearings channel abrasives away from the stainless steel shaft bearing journal | |
| Suction bracket machined for both 4 and 6 motor registers. Designed to effectively divert debris away from the spline engagement area, maximizing durability | |
| Form fitted suction screen provides corrosion resistance, and prevents particulates larger than .19 (4.8 mm) from entering the pump | |
| Fully machined motor coupling for positive fit; highly corrosion resistant | |
Specifications | |
Brand |
Berkeley |
Catalog Number |
B86260 |
Type |
7" Submersible Pumps |
Pump Model |
6TMH7.5-450 |
HP |
7.5 |
Stages |
1 |
GPM |
450 |
Discharge |
4 NPT |
Motor Diameter |
Dual Flanged 4 & 6 |
Shaft |
416 SS |
Impeller |
304 Stainless Steel |
Bowls |
Class 30 Cast Iron |
Motor |
Not Included |
Notes |
See Support Documents |
Support Documents (pdf) | ||||
