Berkeley Pumps

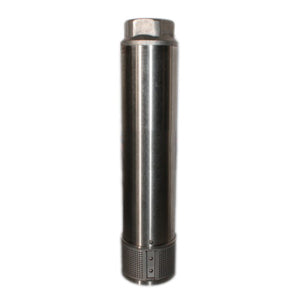

B86111 Berkeley Pumps 6" Submersible Turbine Pump (10 HP, 9 Stages, 3" Discharge, 75 GPM Flow)

B86111 Berkeley Pumps 6" Submersible Turbine Pump (10 HP, 9 Stages, 3" Discharge, 75 GPM Flow)

SKU:B86111

Precio habitual $1,872.77 USD
Precio habitual Precio de oferta $1,872.77 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Berkeley Pumps B86111, 6" Submersible Turbine Pumps Type, 10 HP, 9 Stages, 3" Discharge, 75 GPM Flow,

Applications
The 6TSP series pumps feature abrasion and corrosion resistant materials for maximum performance and longevity under the toughest operating conditions. Components are 100% lead-free, and meet all U.S. federal guidelines for safe drinking water.
Features
Discharge - stainless steel investment cast, 3 FNPT Features 6 extra wide wrench flats for a secure grip when tightening to the drop pipe.
Standard Check valve - The poppet-style check valve helps protect the pump against backflow. The check valve can be easily removed if not required.
Shaft and bearing assembly - A ceramic upper bearing guide combined with a cutless rubber bearing protects the shaft from premature wear.
Impellers and diffusers - Noryl - Smooth and efficient performance, and superior sand handling.
Wear rings - 304 Minimizes re-circulation for increased pump performance and longevity.
Pump sleeve - stainless steel - Provides superior corrosion resistance when the pump is installed in harsh environments.
Lead guard - Easy installation, and protects the motor leads across the full length of the pump.
Suction bracket - stainless steel - Machined for both 4 and 6 motor registers. Bolt kits included for either motor size where appropriate.
Suction screen - Form fitted, provides corrosion resistance, and prevents particulates larger than 0.10 from entering the pump.
Motor Coupling - Designed to effectively divert debris away from the spline engagement area to maximize durability.

Specifications

Brand
Berkeley Pumps
Catalog Number
B86111
Type
6" Submersible Turbine Pumps
Series
6TSP
Pump Model
6TSP10-75
HP
10
Stages
9
Discharge
3"
Motor Diameter
4" & 6"
Flow
75 GPM
Approximate Weight (Lbs)
38
Impeller
Noryl
Pump Sleeve
Stainless Steel
Notes
See Support Documents

Support Documents (pdf)
