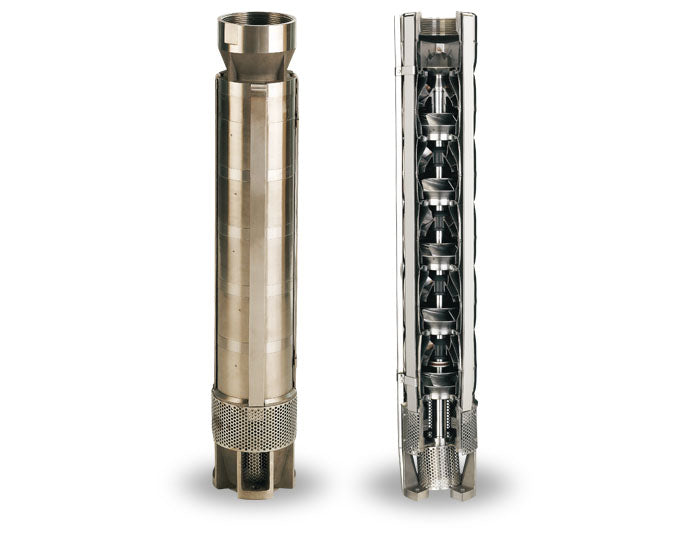

B86052 Berkeley 6" Submersible Pump - End Only (6TS30-300, 300 GPM, 30 HP, 8 Stages, Pump - End Only w/ CV)
B86052 Berkeley 6" Submersible Pump - End Only (6TS30-300, 300 GPM, 30 HP, 8 Stages, Pump - End Only w/ CV)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:B86052
Precio habitual
$5,042.40 USD
Precio habitual
$8,939.00 USD
Precio de oferta
$5,042.40 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
View price in cart
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
* If you are tax exempt, email your tax form to Sales@kgpowersystems.com
Berkeley B86052, 6TS30-300, 6" Submersible Pump w/ CV, 300 GPM, 30 HP, 8 Stage(s), 4 Discharge (Female),
| Applications | |
| BERKELEY 6TS Series Pumps feature heavy-duty 304 stainless steel construction and hard chrome wear surfaces that will outperform ordinary fabricated stainless steel pumps in aggressive water conditions. | |
| Features | |
| Cast 304 Stainless Steel Discharge | |
| Hard Chrome-Plated Top Bearing Journal reduces abrasive wear in harsh sandy well conditions | |
| Self-Aligning Teflon Wear Rings improve pump efficiency and durability | |
| Low-Profile Stainless Steel Lead Guard aids installation in narrow wells | |
| Built-In Up-Thrust Protection protects pump during periods of high demand and start-up preventing pump failure | |
| 304 Stainless Steel Inlet Screen and Internal Coupling Screen prevents entry of abrasives into pump and coupling areas | |
Specifications | |
Brand |
Berkeley |
Model Number |
B86052 |
Pump Model |
6TS30-300 |
Type |
6" Submersible Pump w/ CV |
Liquid End Only |
Pump End Only (Motor Not Included) |
Series |
6TS Stainless Steel Subturbine Series |
Flow Range |
300 GPM |
HP |
30 |
Stage(s) |
8 |
Discharge (Female) |
4 |
Motor Diameter |
6 |
Motor |
Not Included - See Motor Category |
Check Valve |
Included |
Weight (lbs.) |
75 |
Notes & Pump Curve |
Please See Support Documents |
Support Documents (pdf) | ||||
