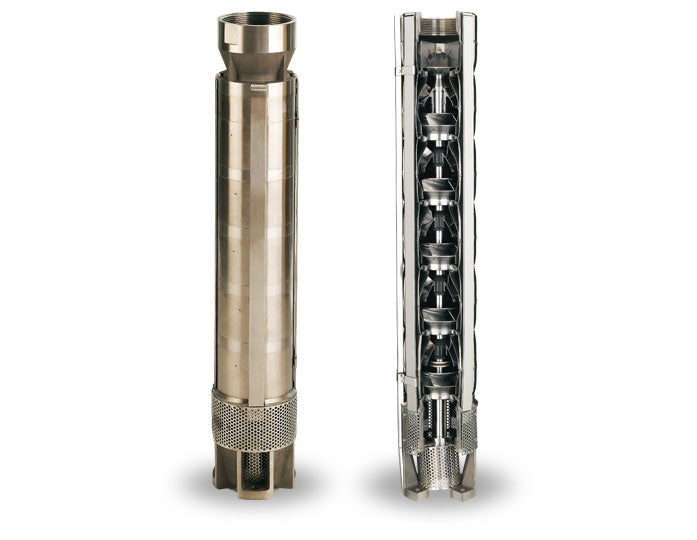

B85984 Berkeley 6" Submersible Pump - End Only (6TS25-115, 115 GPM, 25 HP, 14 Stages, Pump - End Only W/O CV)
B85984 Berkeley 6" Submersible Pump - End Only (6TS25-115, 115 GPM, 25 HP, 14 Stages, Pump - End Only W/O CV)
[COUNT] shoppers are looking at this right now
No reviews
SKU:B85984
Precio habitual
$4,912.80 USD
Precio habitual
$10,235.00 USD
Precio de oferta
$4,912.80 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
View price in cart
No se pudo cargar la disponibilidad de retiro
Berkeley B85984, 6TS25-115, 6" Submersible Pump w/o CV, 115 GPM, 25 HP, 14 Stage(s), 3 Discharge (Female),
| Applications | |
| BERKELEY 6TS Series Pumps feature heavy-duty 304 stainless steel construction and hard chrome wear surfaces that will outperform ordinary fabricated stainless steel pumps in aggressive water conditions. | |
| Features | |
| Cast 304 Stainless Steel Discharge | |
| Hard Chrome-Plated Top Bearing Journal reduces abrasive wear in harsh sandy well conditions | |
| Self-Aligning Teflon Wear Rings improve pump efficiency and durability | |
| Low-Profile Stainless Steel Lead Guard aids installation in narrow wells | |
| Built-In Up-Thrust Protection protects pump during periods of high demand and start-up preventing pump failure | |
| 304 Stainless Steel Inlet Screen and Internal Coupling Screen prevents entry of abrasives into pump and coupling areas | |
Specifications | |
Brand |
Berkeley |
Model Number |
B85984 |
Pump Model |
6TS25-115 |
Type |
6" Submersible Pump w/o CV |
Liquid End Only |
Pump End Only (Motor Not Included) |
Series |
6TS Stainless Steel Subturbine Series |
Flow Range |
115 GPM |
HP |
25 |
Stage(s) |
14 |
Discharge (Female) |
3 |
Motor Diameter |
6 |
Motor |
Not Included - See Motor Category |
Check Valve |
Not Included |
Weight (lbs.) |
90 |
Notes & Pump Curve |
Please See Support Documents |
Support Documents (pdf) | ||||
