Berkeley Pumps

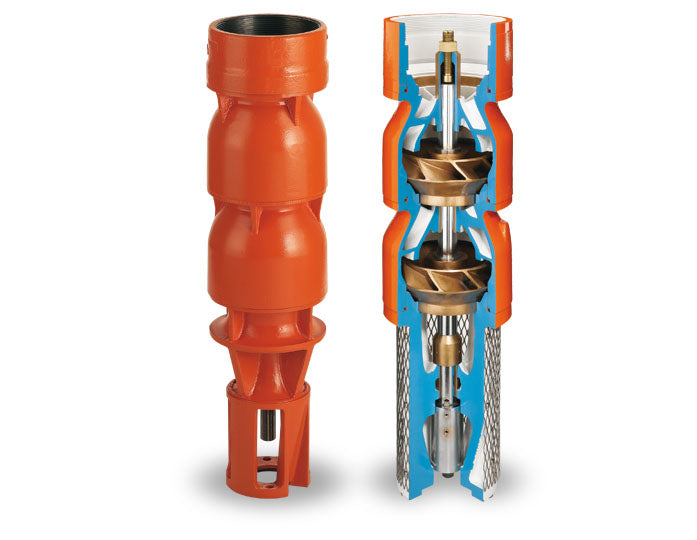

B82909 Berkeley 10" Submersible Pump - End Only (10T60-1200, 1200 GPM, 60 HP, 1 Stage(s), Pump - End Only End)

B82909 Berkeley 10" Submersible Pump - End Only (10T60-1200, 1200 GPM, 60 HP, 1 Stage(s), Pump - End Only End)

B82909

$3,422.46 USD
$3,422.46 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Berkeley B82909, 10T60-1200, 10" Submersible Pump, 1200 GPM, 60 HP, 1 Stage(s), 8" F NPT Discharge (Female), 416 Stainless Steel Shaft,

Applications
BERKELEY 10T Series Pumps are proven performers for a wide range of municipal and agricultural applications. Pumps feature Epoxy Coated Bowls, Bronze Impellers and Bearings to provide efficiencies in 80% plus range.
Features
Heavy-Duty Discharge Adapter is Class 30 cast iron and includes a bronze top bearing and stainless steel journal. Threaded discharge is sized for the pump's flow range. Factory-set thrust screw, retained by a stainless steel lockout, provides maximum upthrust protection
Heavy-Walled Class 30 Cast Iron Bowls incorporate precise hydraulic design for maximum efficiency and performance. Positive "Bowl Lock" feature eliminates risk of bowl loosening
Bronze Impeller is designed and machined to optimize efficiency and performance
Bronze Bearings maintain positive shaft alignment, minimizing sand penetration and wear
Wear Rings enable pumps to be re-built to maintain original factory performance
Non-Corrosive Sand Cap protects bronze suction bracket bearing and stainless steel bearing journal
416 Stainless Steel Pump Shaft is precision ground & polished for reduced running friction & increased service life
Heavy-Duty Cast Iron Suction Strainer is non-collapsible and corrosion-resistant
Heavy-Duty Cast Iron Suction Bracket assures perfect pump-to-motor alignment with NEMA standard motors

Specifications

Brand
Berkeley
Model Number
B82909
Pump Model
10T60-1200
Type
10" Submersible Pump
Liquid End
Pump End Only
Series
10T Subturbine Series
Flow Range
1200 GPM
HP
60
Stage(s)
1
Discharge (Female)
8" F NPT
Motor Diameter
8"
Shaft
416 Stainless Steel
Motor
Not Included
Weight (lbs.)
163
Notes & Pump Curve
See Support Documents

Support Documents (pdf)
