Berkeley Pumps

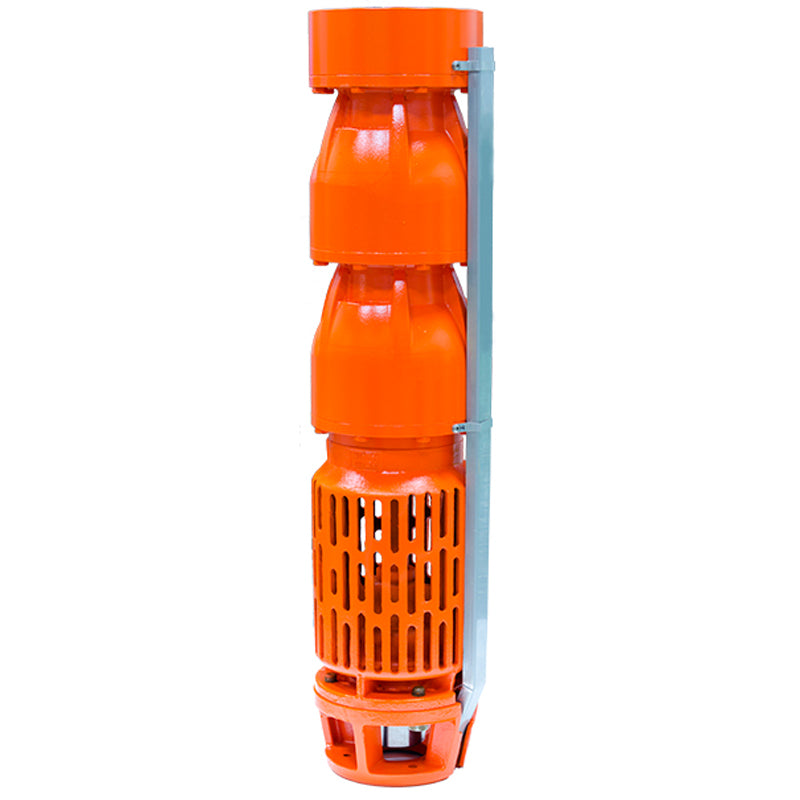

B82897 Berkeley 10" Submersible Pump - End Only (10T100-750, 750 GPM, 100 HP, 3 Stage(s), Pump - End Only End)
B82897 Berkeley 10" Submersible Pump - End Only (10T100-750, 750 GPM, 100 HP, 3 Stage(s), Pump - End Only End)
No reviews
SKU:B82897
Precio habitual
$5,694.23 USD
Precio habitual
Precio de oferta
$5,694.23 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
No se pudo cargar la disponibilidad de retiro
Berkeley B82897, 10T100-750, 10" Submersible Pump, 750 GPM, 100 HP, 3 Stage(s), 8" F NPT Discharge (Female), 416 Stainless Steel Shaft,
| Applications | |
| BERKELEY 10T Series Pumps are proven performers for a wide range of municipal and agricultural applications. Pumps feature Epoxy Coated Bowls, Bronze Impellers and Bearings to provide efficiencies in 80% plus range. | |
| Features | |
| Heavy-Duty Discharge Adapter is Class 30 cast iron and includes a bronze top bearing and stainless steel journal. Threaded discharge is sized for the pump's flow range. Factory-set thrust screw, retained by a stainless steel lockout, provides maximum upthrust protection | |
| Heavy-Walled Class 30 Cast Iron Bowls incorporate precise hydraulic design for maximum efficiency and performance. Positive "Bowl Lock" feature eliminates risk of bowl loosening | |
| Bronze Impeller is designed and machined to optimize efficiency and performance | |
| Bronze Bearings maintain positive shaft alignment, minimizing sand penetration and wear | |
| Wear Rings enable pumps to be re-built to maintain original factory performance | |
| Non-Corrosive Sand Cap protects bronze suction bracket bearing and stainless steel bearing journal | |
| 416 Stainless Steel Pump Shaft is precision ground & polished for reduced running friction & increased service life | |
| Heavy-Duty Cast Iron Suction Strainer is non-collapsible and corrosion-resistant | |
| Heavy-Duty Cast Iron Suction Bracket assures perfect pump-to-motor alignment with NEMA standard motors | |
Specifications | |
Brand |
Berkeley |
Model Number |
B82897 |
Pump Model |
10T100-750 |
Type |
10" Submersible Pump |
Liquid End |
Pump End Only |
Series |
10T Subturbine Series |
Flow Range |
750 GPM |
HP |
100 |
Stage(s) |
3 |
Discharge (Female) |
8" F NPT |
Motor Diameter |
8" |
Shaft |
416 Stainless Steel |
Motor |
Not Included |
Weight (lbs.) |
302 |
Notes & Pump Curve |
See Support Documents |
Support Documents (pdf) |
