B80851 Berkeley Cenrifugal SAE Mount (Mechanical Shaft Seal,Cast Iron Impeller Material,1-1/2"-10T Shaft Spline Size)
B80851 Berkeley Cenrifugal SAE Mount (Mechanical Shaft Seal,Cast Iron Impeller Material,1-1/2"-10T Shaft Spline Size)
No reviews
SKU:B80851
Precio habitual
$5,720.08 USD
Precio habitual
Precio de oferta
$5,720.08 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
No se pudo cargar la disponibilidad de retiro

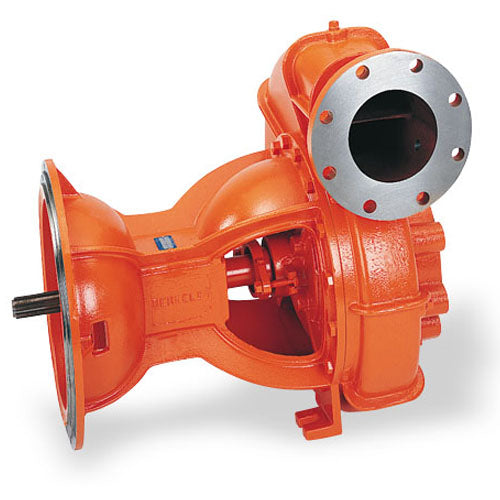

Berkeley B80851,Type "B" For Flywheel Housing,Mechanical Shaft Seal,Cast Iron Impeller Material,1-1/2"-10T Shaft Spline Size6.5" Clutch Size
| Applications | |
| The new standard in full-performance reliability...BERKELEY S.A.E. End Suction Pumps are suitable for any application requiring the convenience of an internal combustion engine as a power source. State-of-the-art design delivers 20,000 hours of bearing life, one of the industry's longest life cycles. | |
| Features | |
| Cast Iron or Silicon Bronze Impellers are available in either packed or mechanical seal configurations. Replaceable stainless steel shaft sleeve is standard, providing maximum corrosion resistance while minimizing shaft wear. | |
| Volute case - Back pull-out design allows easy removal and repair without disturbing piping connections, and completely exposes the impeller for flushing or service. | |
| Heavy-Duty Power Frame is designed for durability delivering in excess of 20,000 hours of bearing life. Includes large shaft and grease-for-life sealed bearings to handle the toughest conditions with less maintenance and more reliability. | |
| Dry-Run Seal option available | |
Specifications | |
Brand |
Berkeley |
Catalog Number |
B80851 |
Type |
Centrifugal Pump, SAE Mount |
Series |
Type "B" For Flywheel Housing |
?Model Number (Size) |
B3ZQMS (3 x 4 x 9 M) Heavy Duty Frame |
Shaft Seal |
Mechanical |
Impeller Material |
Cast Iron |
Volute Connection |
NPT |
Shaft Spline Size |
1-1/2"-10T |
Shaft Ext. |
SAE 42-3/4" SAE 52-1/2" |
Clutch Size |
6.5" |
Coupling Catalog Number (Included) |
B85398 |
