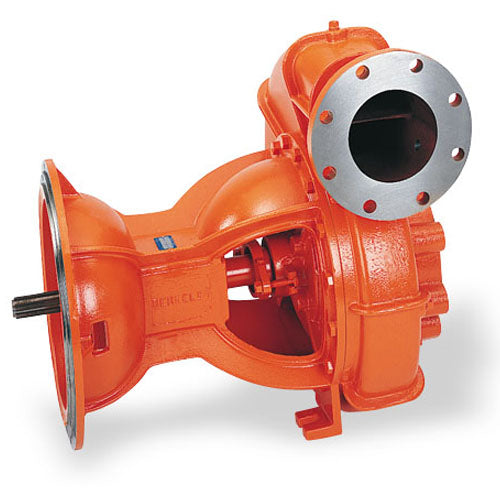

B80848 Berkeley Centrifugal SAE Mount (Model B3ZQMS, Mechanical Shaft Seal, Cast Iron Impeller Material,1-1/2"-10T Shaft Spline Size)

B80848 Berkeley Centrifugal SAE Mount (Model B3ZQMS, Mechanical Shaft Seal, Cast Iron Impeller Material,1-1/2"-10T Shaft Spline Size)

[COUNT] shoppers are looking at this right now

B80848

$7,290.64 USD
$13,019.00 USD $7,290.64 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

View price in cart

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

* If you are tax exempt, email your tax form to Sales@kgpowersystems.com

Berkeley B80848,Type "B" For Flywheel Housing,Mechanical Shaft Seal,Cast Iron Impeller Material,1-1/2"-10T Shaft Spline Size10" Clutch Size

Applications
The new standard in full-performance reliability...BERKELEY S.A.E. End Suction Pumps are suitable for any application requiring the convenience of an internal combustion engine as a power source. State-of-the-art design delivers 20,000 hours of bearing life, one of the industry's longest life cycles.
Features
Cast Iron or Silicon Bronze Impellers are available in either packed or mechanical seal configurations. Replaceable stainless steel shaft sleeve is standard, providing maximum corrosion resistance while minimizing shaft wear.
Volute case - Back pull-out design allows easy removal and repair without disturbing piping connections, and completely exposes the impeller for flushing or service.
Heavy-Duty Power Frame is designed for durability delivering in excess of 20,000 hours of bearing life. Includes large shaft and grease-for-life sealed bearings to handle the toughest conditions with less maintenance and more reliability.
Dry-Run Seal option available

Specifications

Brand
Berkeley
Catalog Number
B80848
Type
Centrifugal Pump, SAE Mount
Series
Type "B" For Flywheel Housing
?Model Number (Size)
B3ZQMS (3 x 4 x 9 M) Heavy Duty Frame
Shaft Seal
Mechanical
Impeller Material
Cast Iron
Volute Connection
VICTAULIC
Shaft Spline Size
1-1/2"-10T
Shaft Ext.
SAE 42-3/4" SAE 52-1/2"
Clutch Size
10"
Coupling Catalog Number (Included)
B85404
