Berkeley Pumps

B80376 Berkeley Centrifugal SAE Mount (Packing Shaft Seal , Cast Iron Impeller Material , 1-1/2"-10T Shaft Spline Size , )

B80376 Berkeley Centrifugal SAE Mount (Packing Shaft Seal , Cast Iron Impeller Material , 1-1/2"-10T Shaft Spline Size , )

SKU:B80376

Precio habitual $8,733.85 USD
Precio habitual Precio de oferta $8,733.85 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

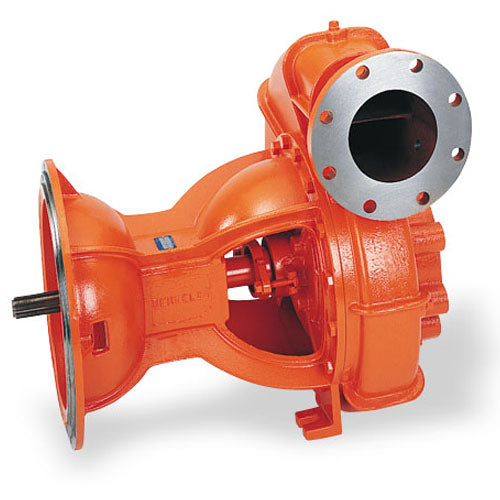

Berkeley B80376 , Type "B" For Flywheel Housing , Packing Shaft Seal , Cast Iron Impeller Material , 1-1/2"-10T Shaft Spline Size , 3 SAE HSG Size ,
Applications
The new standard in full-performance reliability...BERKELEY S.A.E. End Suction Pumps are suitable for any application requiring the convenience of an internal combustion engine as a power source. State-of-the-art design delivers 20,000 hours of bearing life, one of the industry's longest life cycles.
Features
Cast Iron or Silicon Bronze Impellers are available in either packed or mechanical seal configurations. Replaceable stainless steel shaft sleeve is standard, providing maximum corrosion resistance while minimizing shaft wear.
Volute case - Back pull-out design allows easy removal and repair without disturbing piping connections, and completely exposes the impeller for flushing or service.
Heavy-Duty Power Frame is designed for durability delivering in excess of 20,000 hours of bearing life. Includes large shaft and grease-for-life sealed bearings to handle the toughest conditions with less maintenance and more reliability.
Dry-Run Seal option available

Specifications

Brand
Berkeley
Catalog Number
B80376
Type
Centrifugal Pump, SAE Mount
Series
Type "B" For Flywheel Housing
?Model Number (Size)
B6JQBM (6 x 8 x 13 BM)
Shaft Seal
Packing
Impeller Material
Cast Iron
Volute Connection
FLANGED
Shaft Spline Size
1-1/2"-10T
Shaft Ext.
3"
SAE HSG Size
3

Support Documents (pdf)
Ver todos los detalles
