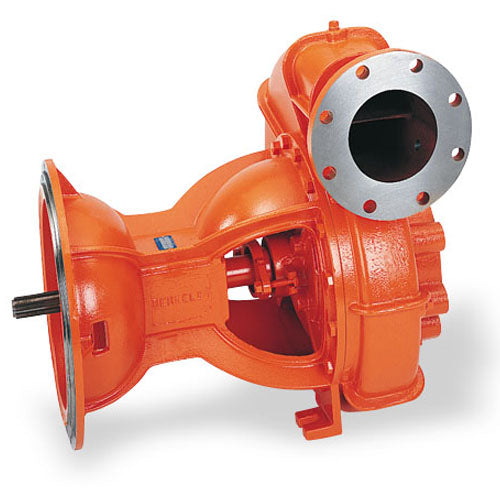

B78033 Berkeley Centrifugal SAE Mount (Mechanical Shaft Seal , Cast Iron Impeller Material , 1-3/8"-10T Shaft Spline Size , )

Berkeley B78033 , Type "B" For Flywheel Housing , Mechanical Shaft Seal , Cast Iron Impeller Material , 1-3/8"-10T Shaft Spline Size , 4 SAE HSG Size ,

Applications
The new standard in full-performance reliability...BERKELEY S.A.E. End Suction Pumps are suitable for any application requiring the convenience of an internal combustion engine as a power source. State-of-the-art design delivers 20,000 hours of bearing life, one of the industry's longest life cycles.
Features
Cast Iron or Silicon Bronze Impellers are available in either packed or mechanical seal configurations. Replaceable stainless steel shaft sleeve is standard, providing maximum corrosion resistance while minimizing shaft wear.
Volute case - Back pull-out design allows easy removal and repair without disturbing piping connections, and completely exposes the impeller for flushing or service.
Heavy-Duty Power Frame is designed for durability delivering in excess of 20,000 hours of bearing life. Includes large shaft and grease-for-life sealed bearings to handle the toughest conditions with less maintenance and more reliability.
Dry-Run Seal option available

Specifications
Brand	Berkeley
Catalog Number	B78033
Type	Centrifugal Pump, SAE Mount
Series	Type "B" For Flywheel Housing
?Model Number (Size)	B2-1/2JQBMS (2-1/2 x 4 x 13 BM)
Shaft Seal	Mechanical
Impeller Material	Cast Iron
Volute Connection	NPT
Shaft Spline Size	1-3/8"-10T
Shaft Ext.	3"
SAE HSG Size	4
