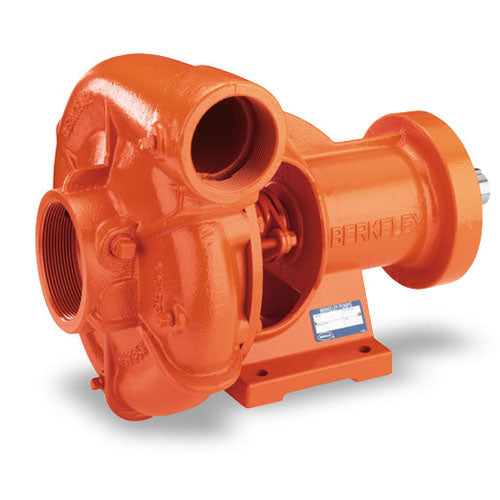

B68454 Berkeley Centrifugal Frame Mount (1-1/2 Discharge In.,2 Suction In.,Mechanical Shaft Seal,Cast Iron Impeller Material)
B68454 Berkeley Centrifugal Frame Mount (1-1/2 Discharge In.,2 Suction In.,Mechanical Shaft Seal,Cast Iron Impeller Material)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:B68454
Precio habitual
$2,469.37 USD
Precio habitual
$4,377.00 USD
Precio de oferta
$2,469.37 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
Berkeley B68454,Type "B" Frame Mount,1-1/2 Discharge In.,2 Suction In.,9 Impeller In., Mechanical Shaft Seal
| Applications | |
| BERKELEY Type B frame-mount centrifugal pumps are designed for the user who has a separate power source suitable for driving through couplings or with belts. Ideal for all general purpose applications requiring high performance, moderate initial cost and easy maintenance. | |
| Features | |
| Volute Case Incorporates Precise Geometric Design for Increased Hydraulic Efficiency | |
| Thick-Walled Close-Grained Cast Iron to Handle the Stresses of Eveeryday Use | |
| Back Pull-Out Design Allows Easy Removal And Service Without Disturbing Piping Connections | |
| Enclosed Impeller Designed and Machined to Optimize Performance and Operating Efficiencies | |
| Discharge May Be Rotated To Any of Four Positions for Piping Convenience | |
|
Specifications |
|
|
Brand
|
Berkeley
|
|
Catalog Number
|
B68454
|
|
Model Number (Size)
|
B1-1/2ZRLS (1-1/2 x 2 x 9 L)
|
|
Type
|
Centrifugal Pump, Frame Mount
|
|
Series
|
Type "B" Frame Mount
|
|
Discharge In.
|
1-1/2
|
|
Suction In.
|
2
|
|
Impeller In.
|
9
|
|
Drive Type
|
-
|
|
Rotation
|
CW
|
|
Shaft Seal
|
Mechanical
|
|
Impeller Material
|
Cast Iron
|
|
Volute Connection
|
NPT
|
|
Weight (Lbs.)
|
80
|
|
Warranty
|
1 Year
|
|
Notes
|
See Support Documents
|
|
Support Documents (pdf)
|
