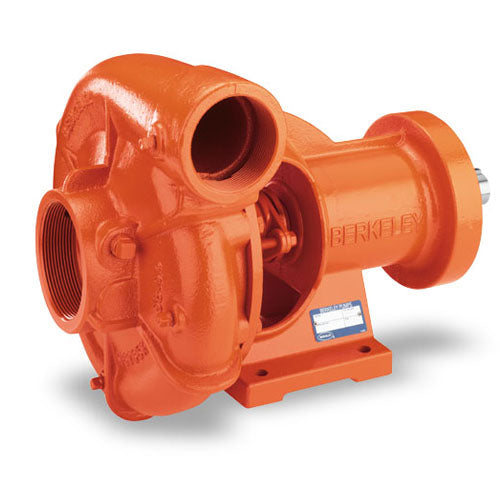

Berkeley Pumps Model B68417 Type B Series Water Truck Pump, Single Stage, Belt Coupling Drive Centrifugal Pump, Cast Iron Impeller, Mechanical Shaft Seal, B3ZRMS Model, 3 x 4 x 9 M Standard Frame Pump Size, VICTAULIC Volute Connection
| Applications |
| BERKELEY Type B frame-mount centrifugal pumps are designed for the user who has a separate power source suitable for driving through couplings or with belts. Ideal for all general purpose applications requiring high performance, moderate initial cost and easy maintenance. |
| Features |
| Volute Case Incorporates Precise Geometric Design for Increased Hydraulic Efficiency |
| Thick-Walled Close-Grained Cast Iron to Handle the Stresses of Every day Use |
| Back Pull-Out Design Allows Easy Removal And Service Without Disturbing Piping Connections |
| Enclosed Impeller Designed and Machined to Optimize Performance and Operating Efficiencies |
| Discharge May Be Rotated To Any of Four Positions for Piping Convenience |
|
Specifications |
|
|
Brand
|
Berkeley
|
|
Catalog Number
|
B68417
|
|
Model Number (Size)
|
B3ZRMS (3 x 4 x 9 M)
|
|
Type
|
Centrifugal Pump, Frame Mount
|
|
Series
|
Type "B" Frame Mount
|
|
Discharge In.
|
3
|
|
Suction In.
|
4
|
|
Impeller In.
|
9
|
|
Drive Type
|
-
|
|
Rotation
|
CW
|
|
Shaft Seal
|
Mechanical
|
|
Impeller Material
|
Cast Iron
|
|
Volute Connection
|
VICTAULIC (Lock Connection / Not threaded)
|
|
Weight (Lbs.)
|
130
|
|
Warranty
|
1 Year
|
|
Notes
|
See Support Documents
|
|
Support Documents (pdf)
|
