Berkeley Pumps

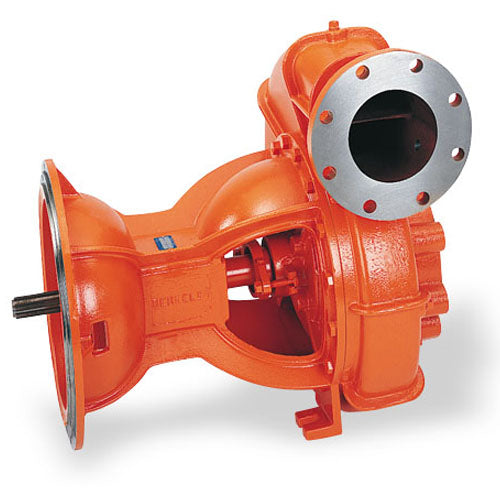

B67294 Berkeley Centrifugal SAE Mount (Mechanical Shaft Seal , Cast Iron Impeller Material , 1-1/2"-10T Shaft Spline Size , )
B67294 Berkeley Centrifugal SAE Mount (Mechanical Shaft Seal , Cast Iron Impeller Material , 1-1/2"-10T Shaft Spline Size , )
SKU:B67294
Precio habitual
$16,456.46 USD
Precio habitual
Precio de oferta
$16,456.46 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
No se pudo cargar la disponibilidad de retiro
Berkeley B67294 , Type "B" For Flywheel Housing , Mechanical Shaft Seal , Cast Iron Impeller Material , 1-1/2"-10T Shaft Spline Size , 3 SAE HSG Size ,
| Applications | |
| The new standard in full-performance reliability...BERKELEY S.A.E. End Suction Pumps are suitable for any application requiring the convenience of an internal combustion engine as a power source. State-of-the-art design delivers 20,000 hours of bearing life, one of the industry's longest life cycles. | |
| Features | |
| Cast Iron or Silicon Bronze Impellers are available in either packed or mechanical seal configurations. Replaceable stainless steel shaft sleeve is standard, providing maximum corrosion resistance while minimizing shaft wear. | |
| Volute case - Back pull-out design allows easy removal and repair without disturbing piping connections, and completely exposes the impeller for flushing or service. | |
| Heavy-Duty Power Frame is designed for durability delivering in excess of 20,000 hours of bearing life. Includes large shaft and grease-for-life sealed bearings to handle the toughest conditions with less maintenance and more reliability. | |
| Dry-Run Seal option available | |
Specifications | |
Brand |
Berkeley |
Catalog Number |
B67294 |
Type |
Centrifugal Pump, SAE Mount |
Series |
Type "B" For Flywheel Housing |
?Model Number (Size) |
B4JQBHS (4 x 5 x 13 BH) |
Shaft Seal |
Mechanical |
Impeller Material |
Cast Iron |
Volute Connection |
FLANGED |
Shaft Spline Size |
1-1/2"-10T |
Shaft Ext. |
3" |
SAE HSG Size |
3 |
Support Documents (pdf) | ||||
