Berkeley Pumps
B53617S Berkeley Straight Centrifugal Pumps (3 HP, 3 Phase, 208/230/460 Voltage, 2-1/2" Suction, 2" Discharge)
B53617S Berkeley Straight Centrifugal Pumps (3 HP, 3 Phase, 208/230/460 Voltage, 2-1/2" Suction, 2" Discharge)
SKU:B53617S
Precio habitual
$2,062.67 USD
Precio habitual
Precio de oferta
$2,062.67 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
No se pudo cargar la disponibilidad de retiro

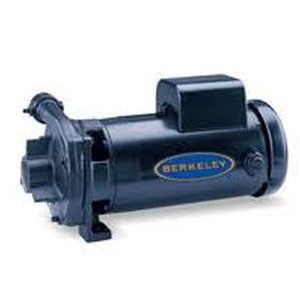

Berkeley B53617S, Straight Centrifugal Pump Type, Type C Series, 3 HP, 3 Phase, 208/230/460 Voltage, 2-1/2" Suction, 2" Discharge,
| Applications | |
| General farm or home irrigation, air conditioning and refrigeration | |
| Features | |
| Manufacture Carefully manufactured with materials best suited for water pump applications assures a unit with long life and dependability. | |
| Bracket Sturdy cast iron bracket houses seal and maintains positive alignment between motor and volute case. | |
| Volute Case Precision machined gray cast iron, with NPT tapped openings for suction and discharge. Standard discharge position is horizontal. Volute may be rotated for vertical-up discharge. | |
| Impeller Enclosed multi-vane silicon bronze impeller is balanced to eliminate vibration and provide smooth, quiet operation. Impeller is threaded on motor shaft for positive alignment. | |
| Shaft Seal Self-adjusting, water-cooled, mechanical shaft seal prevents leakage and eliminates need for drain piping. Run-in and periodic adjustment is not required. | |
| Motor Shaft Stainless steel shaft is threaded for direct mounting of impeller. Shaft extension to impeller is short to increase shaft rigidity and to extend bearing life. | |
| Motor Heavy-duty, 3 HP, flange-mounted, motor designed for continuous 3600 RPM operation. Two ball bearings are permanently lubricated, eliminating the need for re-lubrication service. Open, drip-proof enclosures are standard. | |
Specifications | |
Brand |
Berkeley |
Catalog Number |
B53617S |
Type |
Straight Centrifugal Pump |
Series |
Type C |
HP |
3 |
Phase |
3 |
Voltage |
208/230/460 |
Suction |
2-1/2" |
Discharge |
2" |
RPM |
3600 |
Warranty |
12 Month limited warranty |
Support Documents (pdf) |
