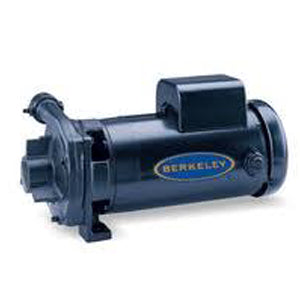

B53603S Berkeley Type C Straight Centrifugal Pumps (Model # C1-1/4TPMS, 3 HP, 3 Phase, 208/230/460 Voltage, 1-1/2" Suction, 1-1/4" Discharge)

B53603S Berkeley Type C Straight Centrifugal Pumps (Model # C1-1/4TPMS, 3 HP, 3 Phase, 208/230/460 Voltage, 1-1/2" Suction, 1-1/4" Discharge)

[COUNT] shoppers are looking at this right now

B53603S

$2,440.92 USD
$4,498.00 USD $2,440.92 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

View price in cart

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

* If you are tax exempt, email your tax form to Sales@kgpowersystems.com

Berkeley B53603S, Straight Centrifugal Pump Type, Type C Series, 3 HP, 3 Phase, 208/230/460 Voltage, 1-1/2" Suction, 1-1/4" Discharge,
Applications
General farm or home irrigation, air conditioning and refrigeration
Features
Manufacture Carefully manufactured with materials best suited for water pump applications assures a unit with long life and dependability.
Bracket Sturdy cast iron bracket houses seal and maintains positive alignment between motor and volute case.
Volute Case Precision machined gray cast iron, with NPT tapped openings for suction and discharge. Standard discharge position is horizontal. Volute may be rotated for vertical-up discharge.
Impeller Enclosed multi-vane silicon bronze impeller is balanced to eliminate vibration and provide smooth, quiet operation. Impeller is threaded on motor shaft for positive alignment.
Shaft Seal Self-adjusting, water-cooled, mechanical shaft seal prevents leakage and eliminates need for drain piping. Run-in and periodic adjustment is not required.
Motor Shaft Stainless steel shaft is threaded for direct mounting of impeller. Shaft extension to impeller is short to increase shaft rigidity and to extend bearing life.
Motor Heavy-duty, 3 HP, flange-mounted, motor designed for continuous 3600 RPM operation. Two ball bearings are permanently lubricated, eliminating the need for re-lubrication service. Open, drip-proof enclosures are standard.

Specifications

Brand
Berkeley
Catalog Number
B53603S
Type
Straight Centrifugal Pump
Series
Type C
HP
3
Phase
3
Voltage
208/230/460
Suction
1-1/2"
Discharge
1-1/4"
RPM
3600
Warranty
12 Month limited warranty
