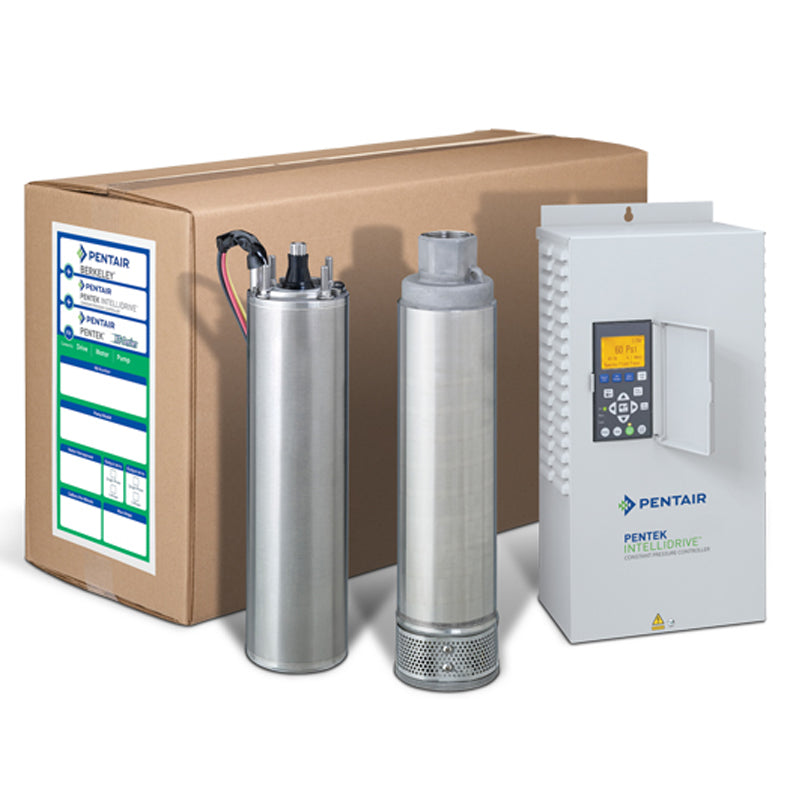

B20PIK20-60 BERKELEY Intellekit, Contains Submersible Motor, Pump and Variable Frequency Drive (20 Flow Series, 2 HP, 60 Hz)
B20PIK20-60 BERKELEY Intellekit, Contains Submersible Motor, Pump and Variable Frequency Drive (20 Flow Series, 2 HP, 60 Hz)
SKU:B20PIK20-60-01
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
| Applications | |
| The Pentek Intellikit Constant Pressure Controller automatically adjusts motor speeds to meet changes in water demand. Instantaneous feedback from an electronic pressure transducer instructs the drive to change the submersible well pump motor speed to maintain constant pressure throughout the system. | |
| Features | |
| Maintain constant water pressure for submersible well pump systems, similar to municipal water systems | |
| Includes Pentek Submersible Motor, | |
| Includes Berkeley Submersible Pump | |
| Includes Pentek Intellidrive Variable Frequency Drive | |
| The Pentek Intellidrive Constant Pressure Controller automatically adjusts motor speeds to meet changes in water demand. Instantaneous feedback from an electronic pressure transducer instructs the drive to change the submersible well pump motor speed to maintain constant pressure throughout the system. | |
| PENTEK Submersible 3-Phase Motor, Built with the latest design, manufacturing and testing technology, Encapsulated stainless steel design and professional-grade insulation, provide longer life in harsh environments, 100% factory pressure- and, run-tested | |
| BERKELEY Submersible Pump, Submersible pumps deliver efficient and dependable performance even in rough, aggressive water, One of the few manufacturers of both pumps and pressurized water storage tanks, now sold in over 100 countries | |
| PENTEK INTELLIDRIVE Variable Frequency Drive, Maintains constant pressure output regardless of fluctuating demand, Extends life of pump and motor, Utilizes a smaller pressure tank for a space-saving solution | |
| 80Hz Kits utilize an undersized liquid end running at higher speed to match pump performance of the curve equivalent to the driving motor. Maximum life expectancy of the liquid end is obtained using 60Hz solutions. | |
Specifications | |
Brand |
BERKELEY |
Catalog Number |
B20PIK20-60 |
Type |
Pentek Intellikit Pre-Specified and Packaged Constant Pressure Systems |
Flow Series |
20 |
HP |
2 |
Shut Off Head TDF (ft) |
420 |
At Rated Flow TDH (ft) |
310 |
Pump |
L20P4GMGS |
Drive |
PID20 |
Motor |
P43B0020A3-C |
Hz |
60 |
Notes |
See Support Documents |
Support Documents (pdf) |
