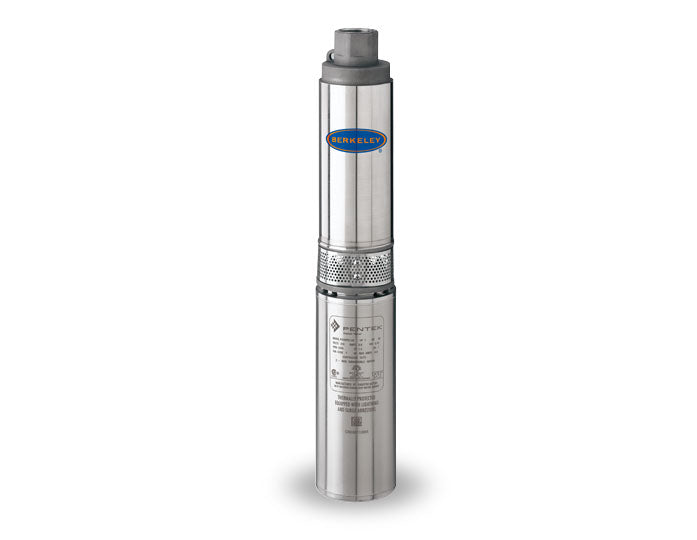

B15P4MS05121-02 Berkeley 4" Submersible Pump Package (15 GPM, 1/2 HP, 5 STAGES, 1 PH, 115 V)

Name: B15P4MS05121-02 Berkeley 4" Submersible Pump Package (15 GPM, 1/2 HP, 5 STAGES, 1 PH, 115 V)
Brand: Berkeley Pumps
SKU: B15P4MS05121-02
Price: 668.79 USD
Availability: InStock

SKU:B15P4MS05121-02

$668.79 USD

~~$1,863.00 USD~~ $668.79 USD

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Cantidad

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.

Berkeley B15P4MS05121, 4" Submersible Pump, 15 GPM, 1/2 HP, 5 STAGES, 1 PH, 115 V, 2 Wires,

Applications
Precision-engineered, high-qquality, rugged MGS Stainless Steel Series Pumps deliver efficient, dependable performance even in rough, aggressive water.

Features
Proven SignaSeal Staging System Incorporates A Harder-Than-Sand Ceramic Wear Surface That When Incorporated With Our Floating Impeller Design, Greatly Reduces Problems With Abrasives, Sand Lock-Up and Running Dry
300 Grade Stainless Steel Discharge is Corrosion-Resistant for Durability in Aggressive Water.
Exclusive Self-Lubricating NYLATRON Discharge Bearing Resists Wear From Sand
Corrosion-Resistant 300 Grade Stainless Steel Intake for Durability in Aggressive Water
Positive Drive Shaft Made From 7/16" Hexagonal Heavy-Duty 300 Grade Stainless Steel
Stainless Steel Coupling Press Fit to Pump Shaft. Couples To All Standard NEMA Motors
Highest Grade Shell Made of Heavy-Walled Corrosion-Resistant Stainless Steel, Threaded for Easy Servicing
Durable, Internal, Spring-Loaded Check Valve
Corrosion-Resistat Stainless Steel Cable Guard Protects Motor Leads. Tapered Ends Prevent Pump From Catching On Well
PENTEK XE Motor is NEMA Standard All Stainless Construction, Water Filled

Specifications
Brand	Berkeley
Model Number	B15P4MS05121
Type	4" Submersible Pump
Series	MGS Series Stainless Steel
Package Contents	Pump & Motor
GPM Series	15
HP	1/2
STAGES	5
PH	1
VOLTS	115
# of Wires	2
Weight lbs.	25
Control	Not Included
Optional Control	N/A
Warranty	1 Year Warranty
Notes & Pump Curve	See Support Documents

Support Documents (pdf)
Notes & Pump Curve
Installation & Parts Manual
