U.S. Motors

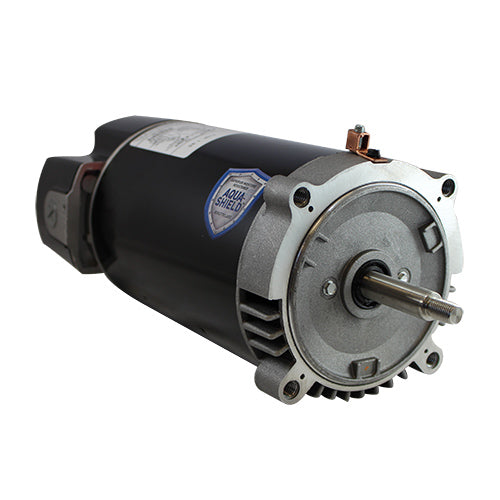

AST165 US Motor Pool & Spa Motor (1.65 HP, ODP, 3450 RPM, 60 Hz, 115/230V, 56J Frame)
AST165 US Motor Pool & Spa Motor (1.65 HP, ODP, 3450 RPM, 60 Hz, 115/230V, 56J Frame)
SKU:AST165
Precio habitual
$265.68 USD
Precio habitual
$301.00 USD
Precio de oferta
$265.68 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
5.0 / 5.0
(1) 1 reseñas totales
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
No se pudo cargar la disponibilidad de retiro
AST165 US Motor (1.65 HP, ODP, 3450 RPM, 60 Hz, 115/230V, 56J Frame)
AQUA-SHIELD EZ48 Pool & Spa Motor
Switch Design 5.5" Frame Dia.
C-Flange Category "J"
Standard Efficient 7/16-20 Thread
THP Rated 1081 Design
Model_Number
C055JMG2155013J
PRODUCT NAME
1.65 HP - ODP - 3450
PHASETYPE
1_CAPACITOR START
MOTOR ENCLOSURE
ODP
HORSEPOWER
1.65
POLES
2
NUMBER SPEEDS
1
RPM
3450
HERTZ
60
VOLTS PRIMARY
230/115 V
VOLTS
230
VOLTS 2
115
FRME
56
SHAFT CODE
J
STATOR DIAMETER
5.5
STACK
3.5
MOUNTING
C-FACE
MOTOR TYPE
FHP
OPPOSITE END BEARING
6203
SHAFT END BEARING
6203
AMBIENT
50
ROTATION
CCW DRIVE END
STARTCAPMFD
198.45
SHIPPING WEIGHT
24
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
105.9
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
30.34
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
KVA CODE LETTER
J
LOCKED ROTOR AMPS
44.2
FULL LOAD AMPS PRIMARY
8.5/17.0
