U.S. Motors

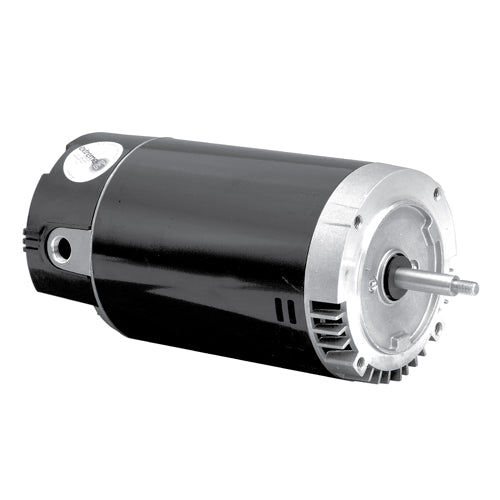

ASB809 US Motors Pool & Spa Motor (2 HP, ODP, 3450 RPM, 56 C Flange)
ASB809 US Motors Pool & Spa Motor (2 HP, ODP, 3450 RPM, 56 C Flange)
[COUNT] shoppers are looking at this right now
No reviews
SKU:ASB809
Precio habitual
$476.69 USD
Precio habitual
$0.00 USD
Precio de oferta
$476.69 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
ASB809 US Motors Pool & Spa Motor (2 HP, ODP, 3450 RPM, 56 C Flange)
| Model_Number: | K063DGK5171023J |
| PRODUCT NAME: | 2.6 HP - ODP - 3450 |
| PHASETYPE: | 1_PERM SPLIT CAP |
| MOTOR ENCLOSURE: | ODP |
| HORSEPOWER: | 2.6 |
| POLES: | 2 |
| NUMBER SPEEDS: | 1 |
| RPM: | 3450 |
| HERTZ: | 60 |
| VOLTS PRIMARY: | 208-230 |
| VOLTS : | 208 |
| VOLTS 2: | 230 |
| FRME : | 56 |
| SHAFT CODE: | J |
| STACK: | 3 |
| MOUNTING: | C-FACE |
| MOTOR TYPE: | FHP |
| OPPOSITE END BEARING: | 6203 |
| SHAFT END BEARING: | 6203 |
| AMBIENT: | 50 |
| ROTATION: | CCW DRIVE END |
| RUNCAPMFD: | 50 |
| RUNCAPVOLTS: | 370 |
| SHIPPING WEIGHT: | 32 |
| THERMAL PROTECTION: | AUTOMATIC RESET |
| BREAKDOWN TORQUE: | 149.6 |
| BREAKDOWN TORQUE UOM: | OZFT |
| LOCKED ROTOR TORQUE: | 13.62 |
| LOCKED ROTOR TORQUE UOM: | OZFT |
| INSULATION CLASS: | B |
| KVA CODE LETTER: | G |
| LOCKED ROTOR AMPS: | 48.99 |
| FULL LOAD AMPS PRIMARY: | 10.6-10.0 |
Compartir
- Questions about this product? Contact our team!
- This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
- All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
