U.S. Motors

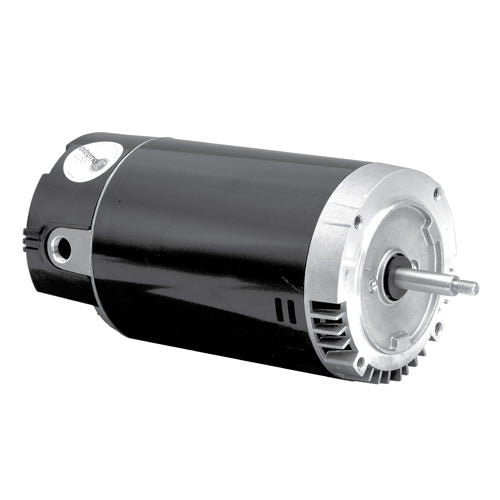

ASB796 US Motor (1.5 HP - ODP - 3450 RPM)
ASB796 US Motor (1.5 HP - ODP - 3450 RPM)
SKU:ASB796
Precio habitual
$404.77 USD
Precio habitual
Precio de oferta
$404.77 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
No se pudo cargar la disponibilidad de retiro
ASB796 US Motor (1.5 HP - ODP - 3450 RPM)
| Model_Number: | K063DGJ5170023J |
| PRODUCT NAME: | 2.25 HP - ODP - 3450 |
| PHASETYPE: | 1_PERMANENT SPLIT CA |
| MOTOR ENCLOSURE: | ODP |
| HORSEPOWER: | 2.25 |
| POLES: | 2 |
| NUMBER SPEEDS: | 1 |
| RPM: | 3450 |
| HERTZ: | 60 |
| VOLTS PRIMARY: | 208-230/115 V |
| VOLTS : | 208 |
| VOLTS 2: | 230 |
| VOLTS 3: | 115 |
| FRME : | 56 |
| SHAFT CODE: | J |
| STATOR DIAMETER: | 6.3 |
| STACK: | 3 |
| MOUNTING: | C-FACE |
| MOTOR TYPE: | FHP |
| OPPOSITE END BEARING: | 6203 |
| SHAFT END BEARING: | 6203 |
| AMBIENT: | 50 |
| ROTATION: | CCW DRIVE END |
| RUNCAPMFD: | 50 |
| RUNCAPVOLTS: | 370 |
| SHIPPING WEIGHT: | 32 |
| THERMAL PROTECTION: | AUTOMATIC RESET |
| BREAKDOWN TORQUE: | 113.3 |
| BREAKDOWN TORQUE UOM: | OZFT |
| LOCKED ROTOR TORQUE: | 13.58 |
| LOCKED ROTOR TORQUE UOM: | OZFT |
| INSULATION CLASS: | B |
| KVA CODE LETTER: | H |
| LOCKED ROTOR AMPS: | 39.72 |
| FULL LOAD AMPS PRIMARY: | 9.7-9.0/18.0 |
Compartir
- Questions about this product? Contact our team!
- Product images may be generic.
