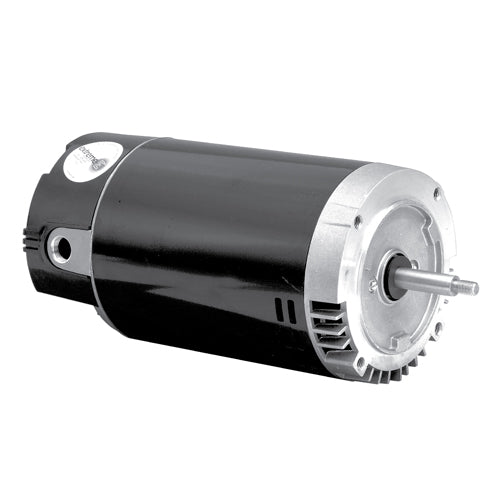

ASB656 US Motor AQUA-SHIELD Pool & Spa Motor (0.98 HP, ODP, 3450 RPM)

Model_Number: K063DZE5189023J
CAT # ASB656
PRODUCT NAME: .98 HP - ODP - 3450
PHASETYPE: 1_PERMANENT SPLIT CA
MOTOR ENCLOSURE: ODP
HORSEPOWER: .98
POLES: 2
NUMBER SPEEDS: 1
RPM: 3450
HERTZ: 60
VOLTS PRIMARY: 208-230/115 V
VOLTS : 208
VOLTS 2: 230
VOLTS 3: 115
FRME : 56
SHAFT CODE: C
STATOR DIAMETER: 6.3
STACK: 1.5
MOUNTING: C-FACE
MOTOR TYPE: FHP
OPPOSITE END BEARING: BALL
SHAFT END BEARING: BALL
AMBIENT: 50
ROTATION: CCW DRIVE END
RUNCAPMFD: 50
RUNCAPVOLTS: 370
SHIPPING WEIGHT: 20
THERMAL PROTECTION: AUTOMATIC RESET
BREAKDOWN TORQUE: 63.14
BREAKDOWN TORQUE UOM: OZFT
LOCKED ROTOR TORQUE: 7.03
LOCKED ROTOR TORQUE UOM: OZFT
INSULATION CLASS: B
KVA CODE LETTER: M
LOCKED ROTOR AMPS: 22.36
FULL LOAD AMPS PRIMARY: 4.5-4.3/8.6
