U.S. Motors

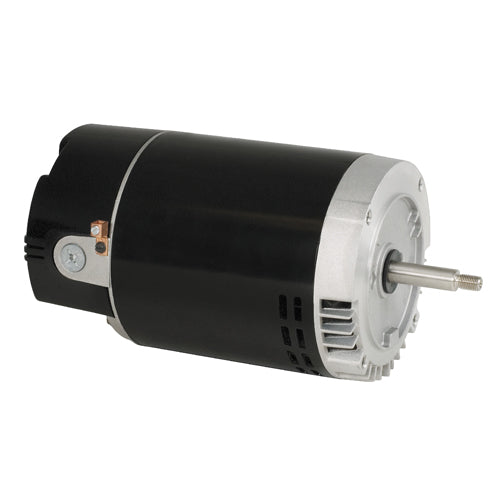

ASB625 Pool Cleaner Replacement Motors (3/4 HP, 3450 RPM, 230/115 Voltage, 56JZ Frame)

ASB625 Pool Cleaner Replacement Motors (3/4 HP, 3450 RPM, 230/115 Voltage, 56JZ Frame)

ASB625

$288.44 USD
$288.44 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

ASB625, Pool Cleaner Replacement Motor, 3/4 HP, 3450 RPM, 230/115 Voltage, 56JZ Motor Frame,
Applications
Pool Cleaner Replacement Motors
Features
Two Compartment
Shaft Threads - 1/2-20 UNF-2A
1081 Design
Continuous Duty
Voltage Selection Device
Class B Insulated
Open Drip Proof
300 Series Stainless Steel Shaft
Thermally Protected
Optimized internal airflow design minimizes heat and moisture buildup inside the motor
Internal bearing cover protects the drive/ pump end ball bearing from water and debris that may occur inside of the motor

Specifications

Brand
US Motor
Catalog Number
ASB625
Type
Pool Cleaner Replacement Motors
Catalog Number
ASB625
HP
3/4
NEMA SF
1.50
Max Pump SF
1.65
THP
1.25
RPM
3450
Voltage
230/115
FREQ
60
NEMA SF Amps
6.3 / 12.6
Max Pump SF Amps
7.0 / 14.0
Motor Frame
56JZ
Length Less Shaft
10.76
Weight
23 lbs
Replacement Brand
Polaris/Zodiac
