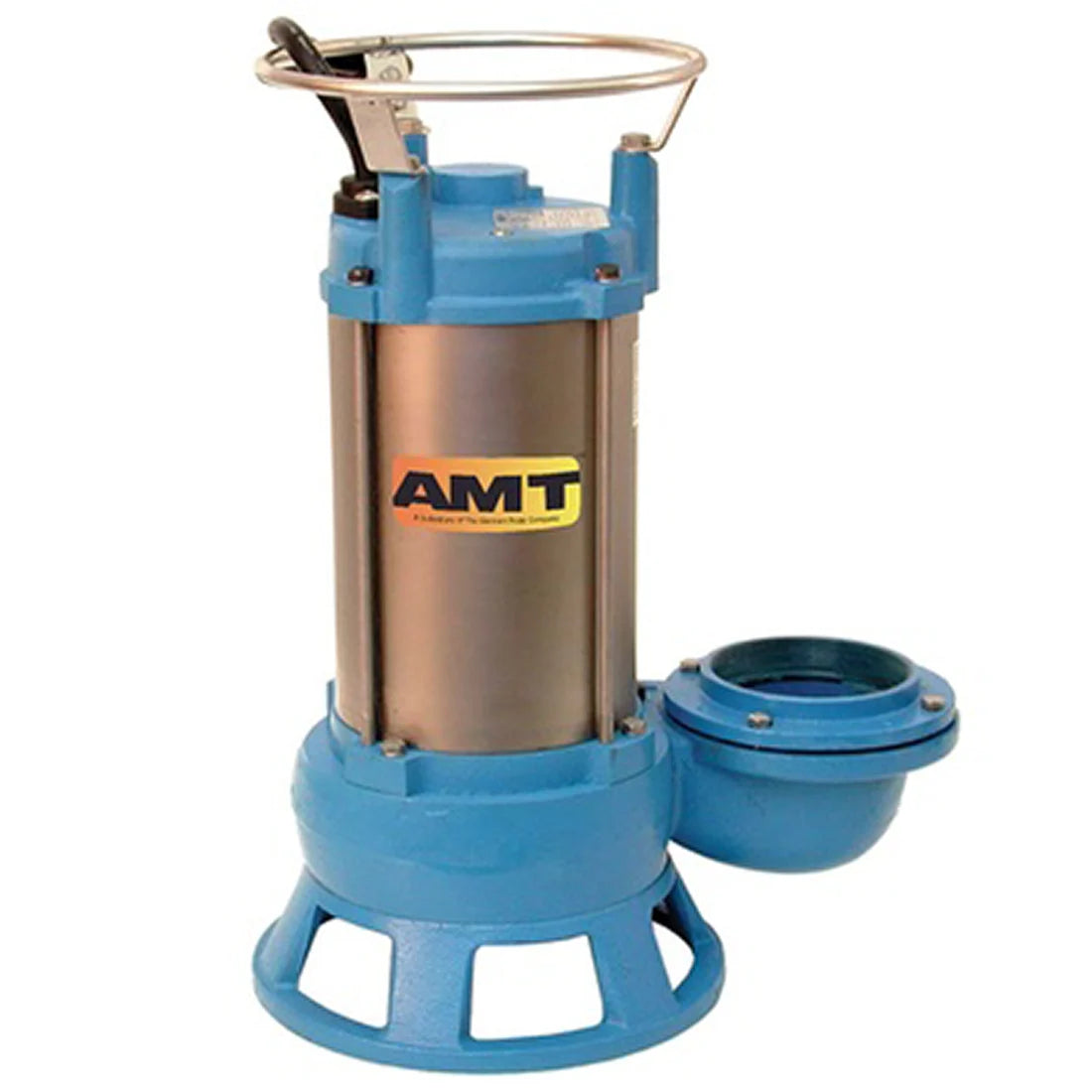

AMT Pumps 576E-95B, 50 Hz Submersible Shredder Sewage Pump (5 HP, 3 PH, 400V, 50z, 4" Discharge, 8 FLA, 1.2 Dia. Max Solids, 10' Cord)

AMT Pumps 576E-95B, 50 Hz Submersible Shredder Sewage Pump (5 HP, 3 PH, 400V, 50z, 4" Discharge, 8 FLA, 1.2 Dia. Max Solids, 10' Cord)

576E-95B

$2,726.62 USD
$4,199.00 USD $2,726.62 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

AMT 576E-95B, 50 Hz Submersible Shredder Sewage Pumps Type, 5 HP, 3 Phase, 400 Voltage, 4 Discharge, 50 Hz, 1.2 Max Solids,
Applications
AMT Submersible Shredder Sewage pumps feature an enhanced spiral shredder mechanism plate and carbide tipped impeller to prevent clogging and reduce maintenance when cutting through stringy, fibrous and sludge type waste. Applications include: sewage pumping stations, septic tanks, sewage treatment plants, dirty water drainage, flood and emergency. Motors are rated continuous duty and single phase models have thermal overload protection. Minimum liquid requirements must be above 85%. Failure to do so may cause pump damage and void warranty.
Features
Cast Iron with Stainless Steel Motor Housing
Carbide Tipped Shredder Impellers
Spiral Shredder Mechanism Plate Surface Hardened for Enhanced Cutting Ability
Triplex Seal System: Double Mechanical Seals Plus Shaft Seal
Lower Seal - Silicon Carbide
110, 220 or 400 VAC @ 50 Hz Available
1 to 5 Horsepower
2, 3 or 4 BST
UL/CSA Listed

Specifications

Brand
AMT
Catalog Number
576E-95B
Type
50 Hz Submersible Shredder Sewage Pumps
HP
5
Phase
3
Voltage
400
Discharge
4
Full Load Amps
8
Hz
50
Max Solids (Dia)
1.2
Cord Length (M)
10
Pump Material
Cast Iron
Notes
See Support Documents

Support Documents (pdf)
