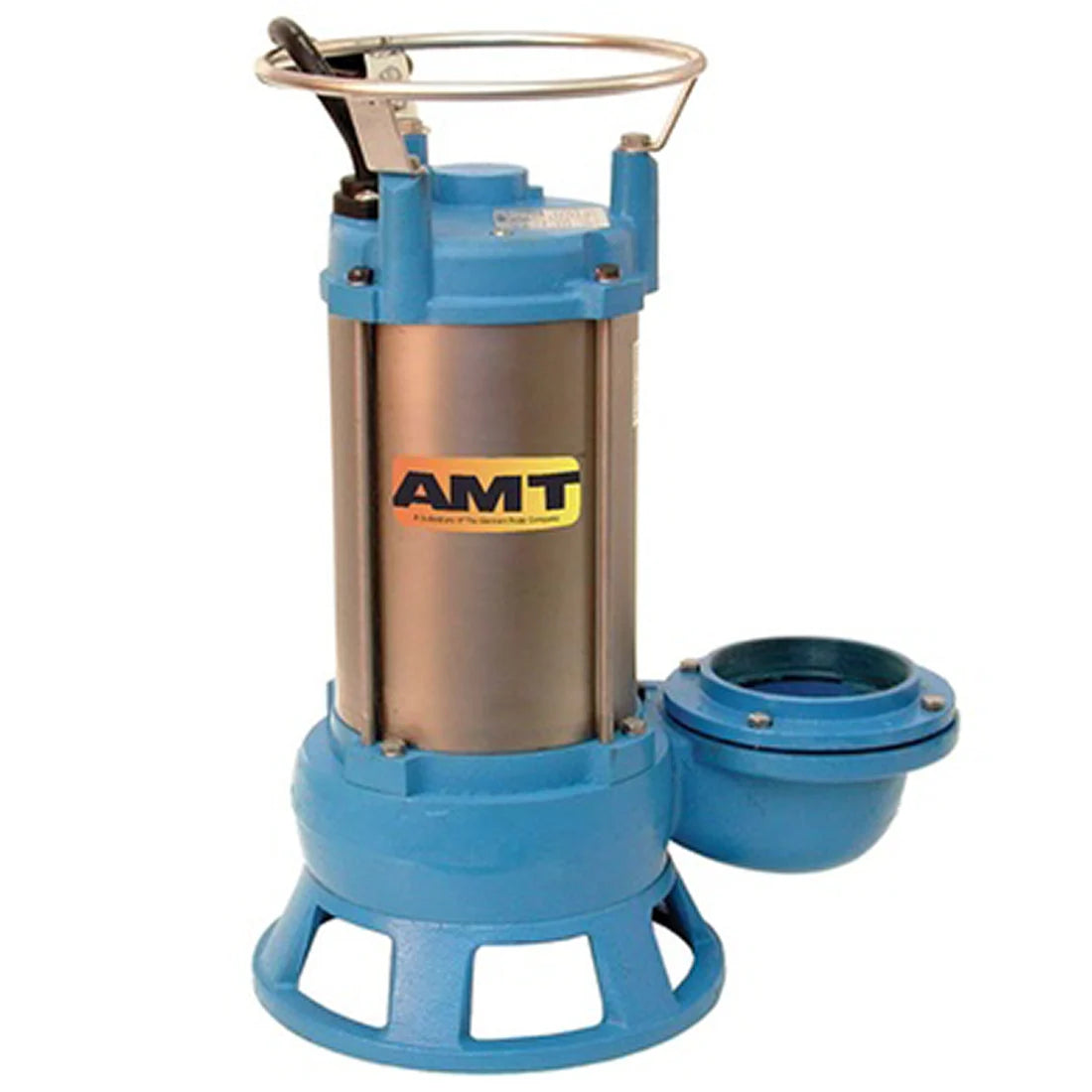

AMT Pumps 576B-95, 2" Submersible Shredder Sewage Pump (1 HP, 3 PH, 460V)

AMT Pumps 576B-95, 2" Submersible Shredder Sewage Pump (1 HP, 3 PH, 460V)

576B-95

$998.05 USD
$1,537.00 USD $998.05 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

AMT 576B-95, Submersible Shredder Sewage Pump,2" NPT DIS, 1 HP, 3 PH, 460 V
Applications
AMT Submersible Shredder Sewage pumps feature an enhanced spiral shredder mechanism plate and carbide tipped impeller to prevent clogging and reduce maintenance when cutting through stringy, fibrous and sludge type waste. Applications include: sewage pumping stations, septic tanks, sewage treatment plants, dirty water drainage, flood and emergency. Motors are rated continuous duty and single phase models have thermal overload protection.
Features
Cast Iron Construction
Stainless Steel Motor Housing
Double Mechanical Seal with Carbide Lower Seal
Carbide Tipped Impeller
UL/CSA Listed
Suction Screen
Carrying Handle
Maximum Temperature 104 F
QSP - Quick Ship Pumps

Specifications

Brand
AMT
Catalog Number
576B-95
Type
Sewage Pumps
Series
Submersible Shredder Sewage Pump
Curve
A
DIS
2" NPT
HP
1
PH
3
V
460
Full Load Amps
2
Max Solids (Dia.)
1
Cord Length (Ft.)
21 w/plug
A
5.3 [13.4]
B
8.9 [22.6]
C
4.5 [11.4]
D
5.5 [14.0]
W
11.4 [28.9]
H
18.5 [46.9]
Ship Wt. (Lbs.)
50
Warranty
1 Year
Notes
See Support Documents
