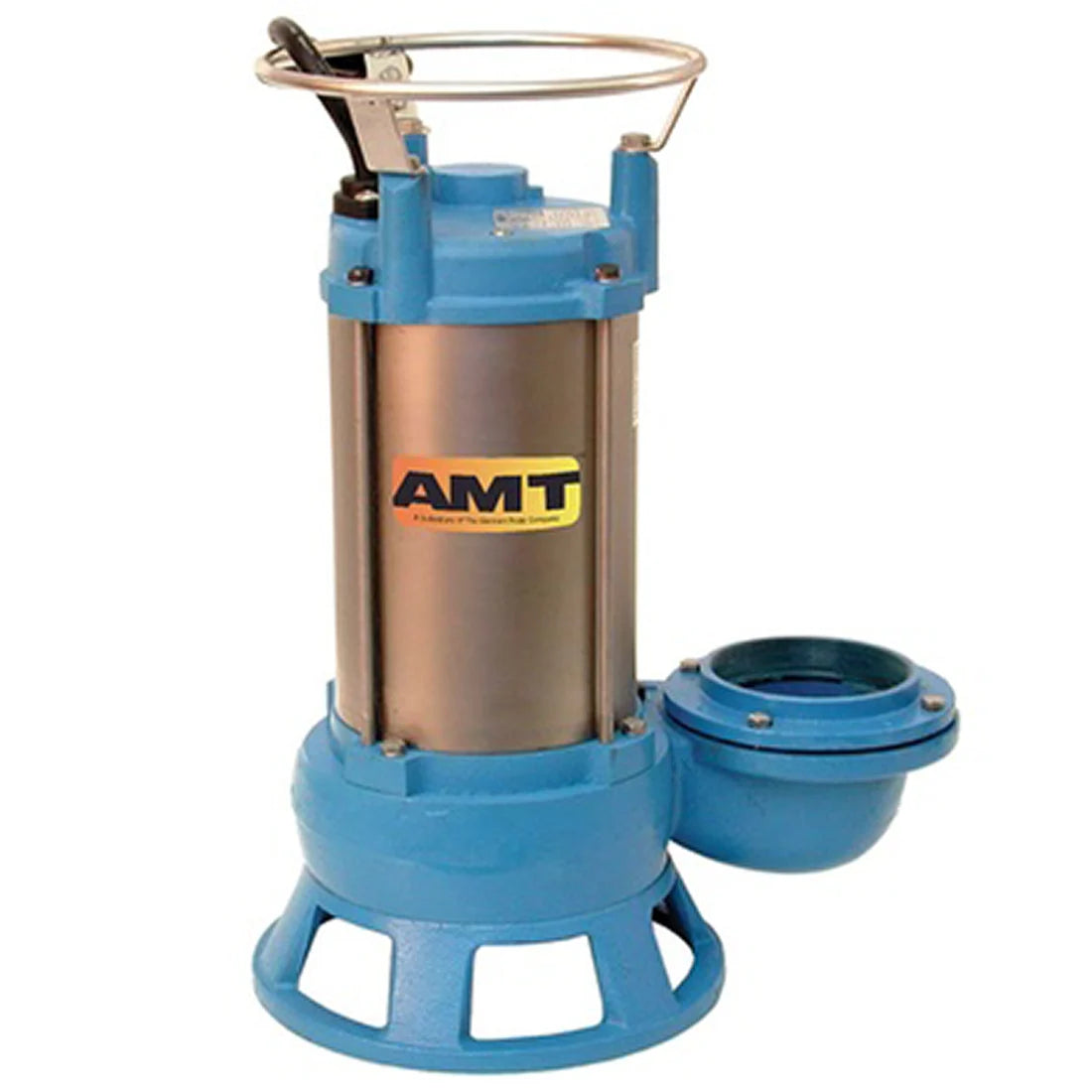

AMT Pumps 5763-95B, 50 Hz Submersible Shredder Sewage Pump (2 HP, 1 PH, 220V, 3" Discharge, 13 FLA, 50 Hz, 1.1 Max Dia. Solids, 10' Cord)
AMT Pumps 5763-95B, 50 Hz Submersible Shredder Sewage Pump (2 HP, 1 PH, 220V, 3" Discharge, 13 FLA, 50 Hz, 1.1 Max Dia. Solids, 10' Cord)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:5763-95B
Precio habitual
$1,594.00 USD
Precio habitual
$2,391.00 USD
Precio de oferta
$1,594.00 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
AMT 5763-95B, 50 Hz Submersible Shredder Sewage Pumps Type, 2 HP, 1 Phase, 220 Voltage, 3 Discharge, 50 Hz, 1.1 Max Solids,
| Applications |
| AMT Submersible Shredder Sewage pumps feature an enhanced spiral shredder mechanism plate and carbide tipped impeller to prevent clogging and reduce maintenance when cutting through stringy, fibrous and sludge type waste. Applications include: sewage pumping stations, septic tanks, sewage treatment plants, dirty water drainage, flood and emergency. Motors are rated continuous duty and single phase models have thermal overload protection. Minimum liquid requirements must be above 85%. Failure to do so may cause pump damage and void warranty. |
| Features |
| Cast Iron with Stainless Steel Motor Housing |
| Carbide Tipped Shredder Impellers |
| Spiral Shredder Mechanism Plate Surface Hardened for Enhanced Cutting Ability |
| Triplex Seal System: Double Mechanical Seals Plus Shaft Seal |
| Lower Seal - Silicon Carbide |
| 110, 220 or 400 VAC @ 50 Hz Available |
| 1 to 5 Horsepower |
| 2, 3 or 4 BST |
| UL/CSA Listed |
|
Specifications |
|
|
Brand
|
AMT
|
|
Catalog Number
|
5763-95B
|
|
Type
|
50 Hz Submersible Shredder Sewage Pumps
|
|
HP
|
2
|
|
Phase
|
1
|
|
Voltage
|
220
|
|
Discharge
|
3
|
|
Full Load Amps
|
13
|
|
Hz
|
50
|
|
Max Solids (Dia)
|
1.1
|
|
Cord Length (M)
|
10
|
|
Pump Material
|
Cast Iron
|
|
Notes
|
See Support Documents
|
|
Support Documents (pdf)
|
