AMT

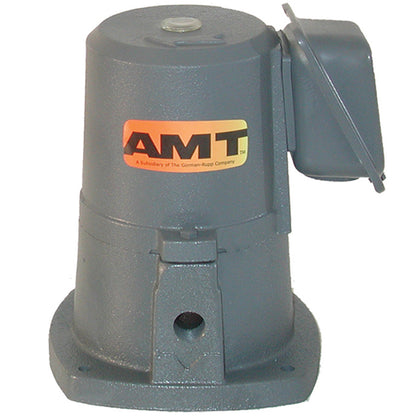

5351-95 AMT Cast Iron Suction-Type Coolant Pump (1/4 HP, 230/460V, 3 Phase, 3/4" NPT (Suction and Discharge), Carbon/Ceramic Seal, 0.75 Port Size)
5351-95 AMT Cast Iron Suction-Type Coolant Pump (1/4 HP, 230/460V, 3 Phase, 3/4" NPT (Suction and Discharge), Carbon/Ceramic Seal, 0.75 Port Size)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:5351-95
Precio habitual
$442.67 USD
Precio habitual
$664.00 USD
Precio de oferta
$442.67 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
AMT 5351-95, Interchangeable Immersion & Suction Coolant/Oil Pumps,SUC,1/4 HP, 230/460 V
| Applications |
| AMT Interchangeable Coolant/Oil pumps are dependable, economical replacement pumps equivalent to units supplied with both domestic and foreign made machine tools such as Fuji, Mitsubishi, Toshiba, Hitachi and many others. These pumps are designed for the circulation and spraying of coolants and cutting oils. Pumps are available with a stainless steel impeller for added corrosion/erosion resistance and durability. 1/8 & 1/4 HP models are available in 115/230 VAC, 60 Hz single phase and 230/460 VAC, 50/60 Hz three phase. Motors are Totally Enclosed with sealed bearings and operate at 3450 RPM. Pumps feature semi-open impellers that are ideal for handling some solids and fine contaminants. |
| Features |
| Suction Type Features |
| Cast Iron Construction |
| Stainless Steel Impeller |
| Carbon Steel Shaft |
| Carbon/Ceramic Shaft Seal |
| Self-Priming up to 2' - Maximum Suction Lift |
| Pumps Must be Mounted Above Liquid |
Specifications | |
Brand |
AMT |
Catalog Number |
5351-95 |
Type |
Coolant/Oil Pumps |
Series |
Interchangeable Immersion & Suction Coolant/Oil Pumps |
Curve |
B |
Type |
Suction |
HP |
1/4 |
Phase |
3 |
Voltage |
230/460 |
Full Load Amps |
0.8/0.4 |
Ship Wt. (Lbs.) |
27 |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) |
