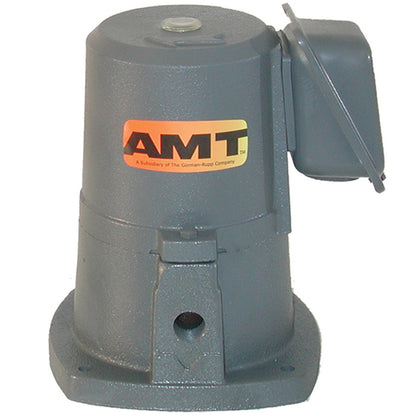

AMT Pumps 5340-95 Suction Coolant / Oil Pump (1/8 HP, 115/230V, 1 Phase, 19/50" NPT (Suction and Discharge)

AMT Pumps 5340-95 Suction Coolant / Oil Pump (1/8 HP, 115/230V, 1 Phase, 19/50" NPT (Suction and Discharge)

5340-95

$214.94 USD
$331.00 USD $214.94 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

AMT 5340-95, Interchangeable Immersion & Suction Coolant/Oil Pumps,SUC,1/8 HP, 115/230 V
Applications
AMT Interchangeable Coolant/Oil pumps are dependable, economical replacement pumps equivalent to units supplied with both domestic and foreign made machine tools such as Fuji, Mitsubishi, Toshiba, Hitachi and many others. These pumps are designed for the circulation and spraying of coolants and cutting oils. Pumps are available with a stainless steel impeller for added corrosion/erosion resistance and durability. 1/8 & 1/4 HP models are available in 115/230 VAC, 60 Hz single phase and 230/460 VAC, 50/60 Hz three phase. Motors are Totally Enclosed with sealed bearings and operate at 3450 RPM. Pumps feature semi-open impellers that are ideal for handling some solids and fine contaminants.
Features
Carbon/Ceramic Shaft Seal
Self-Priming up to 2' - Maximum Suction Lift
Pumps Must be Mounted Above Liquid
Suction Type Features
Cast Iron Construction
Stainless Steel Impeller
Carbon Steel Shaft

Specifications

Brand
AMT
Catalog Number
5340-95
Type
Coolant/Oil Pumps
Series
Interchangeable Immersion & Suction Coolant/Oil Pumps
Curve
A
Type
Suction
HP
1/8
Phase
1
Voltage
115/230
Full Load Amps
0.7/0.35
Ship Wt. (Lbs.)
14
Warranty
1 Year
Notes
See Support Documents
