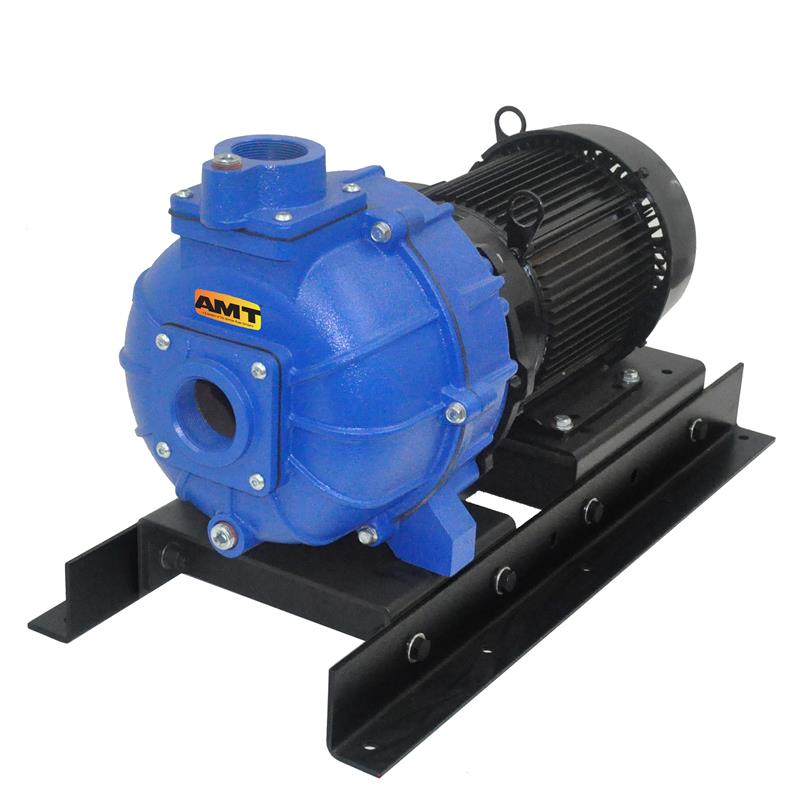

AMT Pumps 4803-95, 2" Self-Priming High Pressure Pump (7.5 HP, 1 PH, 2" Suction, 2" Discharge, 230V, Cast Iron, Viton Seal)
AMT Pumps 4803-95, 2" Self-Priming High Pressure Pump (7.5 HP, 1 PH, 2" Suction, 2" Discharge, 230V, Cast Iron, Viton Seal)
SKU:4803-95
Precio habitual
$2,483.77 USD
Precio habitual
$3,825.00 USD
Precio de oferta
$2,483.77 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
No se pudo cargar la disponibilidad de retiro
AMT 4803-95, 2" Self-Priming High Pressure Pump, 7.5 HP, 1 Phase, 2" Discharge, Cast Iron Material,
| Applications | |
| AMT 2 Self Priming High Pressure Pumps are self-priming high pressure booster pumps with a two stage impeller design to provide additional pressure. All models feature cast iron construction with aluminum impellers and Viton Mechanical Seals. Built-in EPR/EPDM check valve for fast priming are standard on all units. Fill and drain plugs for easy installation and servicing. These units are self-priming up to 20 feet and are suitable for high pressure applications such as dewatering, sprinkler/booster, irrigation, and fire protection. Units are close coupled and are available in 7-1/2 to 10 horsepower TEFC electric motors. | |
| Features | |
| Cast Iron Construction with Dual Closed Vane Aluminum Impellers | |
| Viton Mechanical Seal w/ Silicon Carbide and Carbon Faces | |
| Built in EPR/EDPM Check Valve permits Self-Priming up to 20 Ft. | |
| Closed Vane Aluminum Impeller design for High Pressure Performance | |
| Fill and Drain Plugs for Easy Installation and Servicing | |
| 2 NPT Suction and Discharge Ports | |
| Maximum Temperature 180 F | |
| Maximum Working Pressure 150 PSI | |
| Optional Mounting Base Available (A200-90) available on all models | |
| Hazardous Duty/Xplosion Proof Motors Available; Call for Quote and Lead Time | |
Specifications | |
Brand |
AMT |
Catalog Number |
4803-95 |
Type |
2" Self-Priming High Pressure Pump |
HP |
7.5 |
Phase |
1 |
Suction |
2" |
Discharge |
2" |
Type |
TEFC |
Frame |
215JM |
VAC/60 Hz |
230 |
Material |
Cast Iron |
Seal |
Viton/Sil/Car |
Full Load Amp |
31 |
Ship WT (lbs) |
222 |
Self-Priming |
to 20' |
Max Head |
270 ft |
Max PSI |
116 |
Max GPM |
90 |
QSP |
N |
Optional Base |
Model A200-90 |
Support Documents (pdf) |
