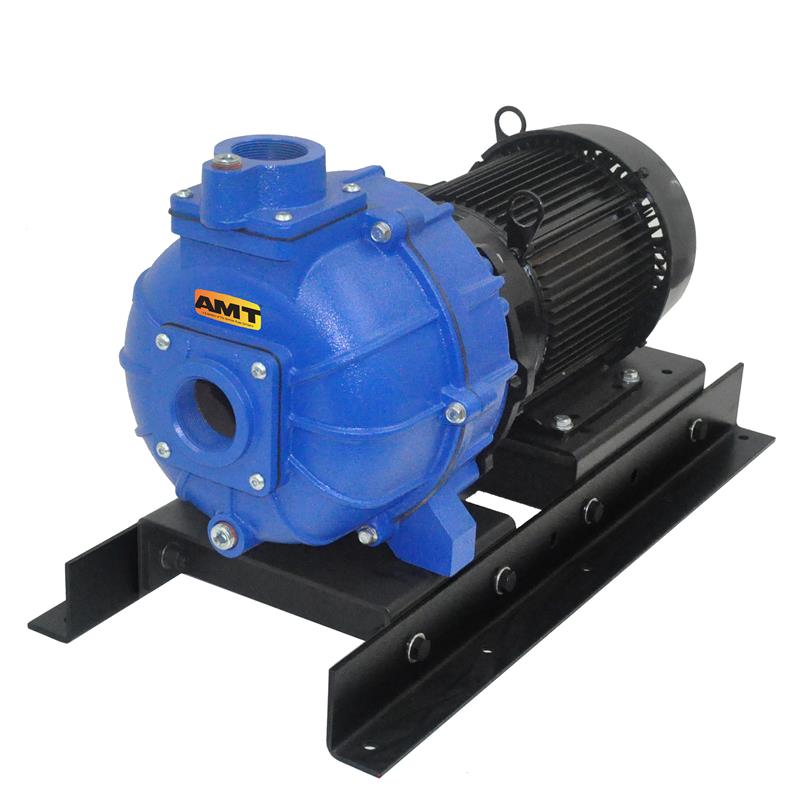

4802-95 AMT 2" Cast Iron Self-Priming High Pressure Pump (7.5 HP, 3 PH, 2" Discharge, 2" Suction, TEFC, Cast Iron, 208-230-460V)

4802-95 AMT 2" Cast Iron Self-Priming High Pressure Pump (7.5 HP, 3 PH, 2" Discharge, 2" Suction, TEFC, Cast Iron, 208-230-460V)

👁️ [COUNT] People are currently viewing this product.

4802-95

$1,867.33 USD
$2,801.00 USD $1,867.33 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

* If you are tax exempt, email your tax form to Sales@kgpowersystems.com

AMT 4802-95, 2" Self-Priming High Pressure Pump, 7.5 HP, 3 Phase, 2" Discharge, Cast Iron Material,
Applications
AMT 2 Self Priming High Pressure Pumps are self-priming high pressure booster pumps with a two stage impeller design to provide additional pressure. All models feature cast iron construction with aluminum impellers and Viton Mechanical Seals. Built-in EPR/EPDM check valve for fast priming are standard on all units. Fill and drain plugs for easy installation and servicing. These units are self-priming up to 20 feet and are suitable for high pressure applications such as dewatering, sprinkler/booster, irrigation, and fire protection. Units are close coupled and are available in 7-1/2 to 10 horsepower TEFC electric motors.
Features
Cast Iron Construction with Dual Closed Vane Aluminum Impellers
Viton Mechanical Seal w/ Silicon Carbide and Carbon Faces
Built in EPR/EDPM Check Valve permits Self-Priming up to 20 Ft.
Closed Vane Aluminum Impeller design for High Pressure Performance
Fill and Drain Plugs for Easy Installation and Servicing
2 NPT Suction and Discharge Ports
Maximum Temperature 180 F
Maximum Working Pressure 150 PSI
Optional Mounting Base Available (A200-90) available on all models
Hazardous Duty/Xplosion Proof Motors Available; Call for Quote and Lead Time

Specifications

Brand
AMT
Catalog Number
4802-95
Type
2" Self-Priming High Pressure Pump
HP
7.5
Phase
3
Suction
2"
Discharge
2"
Type
TEFC
Frame
184JM
VAC/60 Hz
208-230/460
Material
Cast Iron
Seal
Viton/Sil/Car
Full Load Amp
22/11
Ship WT (lbs)
160
Self-Priming
to 20'
Max Head
270 ft
Max PSI
116
Max GPM
90
QSP
N
Optional Base
Model A200-90
