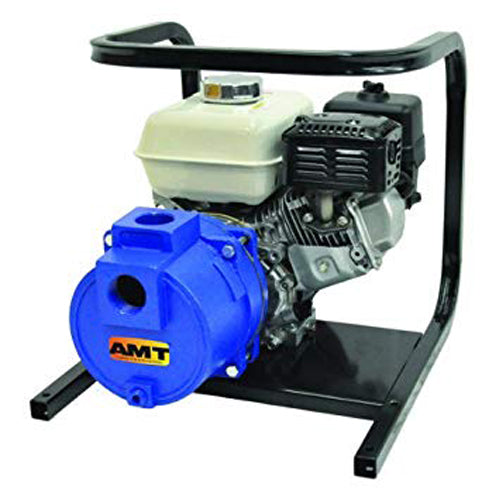

4789-95 AMT 1-1/2" Cast Iron Two Stage High Pressure Pump (Honda GX160 Engine, 5 HP, Buna-N Seal, .82 Gal Tank, 2 HR Run Time, 1-1/2" NPT Discharge)

4789-95 AMT 1-1/2" Cast Iron Two Stage High Pressure Pump (Honda GX160 Engine, 5 HP, Buna-N Seal, .82 Gal Tank, 2 HR Run Time, 1-1/2" NPT Discharge)

[COUNT] shoppers are looking at this right now

4789-95

$0.00 USD
$0.00 USD $0.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

AMT 4789-95, Engine Driven Two Stage High Pressure Pumps,Honda GX160,Buna-N,5 HP,1-1/2" NPT
Applications
The AMT line of Engine Driven High Pressure pumps is designed for lawn Sprinkling, agricultural spraying, dewatering, fire fighting, emergency water supply and pressure boosting. Two-stage models feature cast iron diffusers and 300 series stainless steel investment cast impellers for high efficiency producing up to 70 PSI that generally requires 8 horsepower or more from a single stage pump. Pumps offer a broad selection of gasoline engines from the leading engine manufacturer with dependable service worldwide. All models include: cast iron pipe nipples, 90 discharge elbow, strainer/foot valve and rugged heavy duty steel roll frame for protection and durability.
Features
Buna-N Mechanical Seal and O-ring
Stainless Steel High Efficiency Closed Impellers
Two NPT Pipe Nipples & 90 Discharge Elbow
Self-primes to 10 Ft. Without Foot Valve
Replaceable Volute/Diffuser
Maximum Temperature 180 F
Strainer/Foot Valve Included

Specifications

Brand
AMT
Catalog Number
4789-95
Type
High Pressure Pumps
Series
Engine Driven Two Stage High Pressure Pumps
Driver
Honda GX160
Seal Type & Elastomer/Faces
Buna-N
Tank Size (Gal/Ltr)
0.82 / 3.1
Run Time (Hr.)
2
Ship Wt. (Lbs.)
100
HP Class
5 HP
SUC
1-1/2" NPT
DIS
1-1/2" NPT
L
20.2"
W
17.5"
H
17.6"
Warranty
1 Year
Notes
See Support Documents

Support Documents (pdf)
