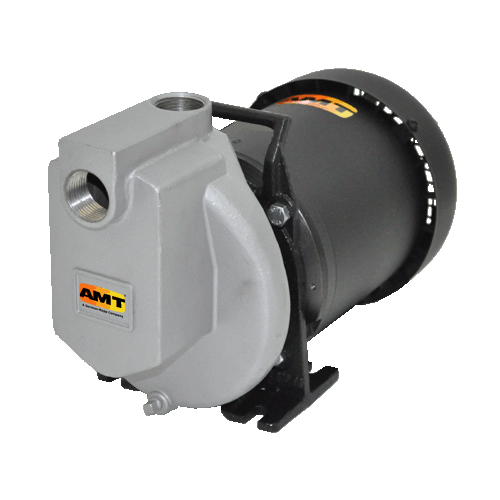

AMT Pumps 4296-98, 1" Self-Priming SS Centrifugal Pump (3/4 HP, 1 PH, ODP , 115/230 V, 1" NPT , 1" NPT Discharge)

Name: AMT Pumps 4296-98, 1" Self-Priming SS Centrifugal Pump (3/4 HP, 1 PH, ODP , 115/230 V, 1" NPT , 1" NPT Discharge)
Brand: AMT
SKU: 4296-98
Price: 787.66 USD
Availability: InStock

SKU:4296-98

$787.66 USD

~~$1,213.00 USD~~ $787.66 USD

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Cantidad

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.

AMT 4296-98, 3/4 HP, 1 PH, ODP , 115/230 V, 1" NPT , 1" NPT Discharge

Applications
AMT 300 Series Investment Cast Stainless Steel Transfer pumps are designed to handle liquids and chemicals with specific gravities to 1.6. The pumps are particularly well suited to applications involving erchloroethylene (PCE) and are recommended for use with non-flammable liquids.

Features
300 Series Investment Cast Stainless Steel Construction
Viton Mechanical Seal and O-ring
1" NPT Suction and Discharge Ports
ODP or TEFC Single and Three Phase Motors
Maximum Working Pressure 75 PSI
Maximum Temperature 200 F
Self-cleaning, Semi-open Impeller
QSP - Quick Ship Pump for Many Models

Specifications
Brand	AMT
Catalog Number	4296-98
Type	Centrifugal Pumps
Series	1" Self-Priming Stainless Steel Centrifugal Pumps
Curve	C
HP	3/4
PH	1
ENC	ODP
Voltage @ 60 Hz +	115/230
Full Load Amps	13/7
Suction	1" NPT
Discharge	1" NPT
L	15.6 [39.6]
W	6.8 [17.3]
H	8.8 [22.3]
Ship Wt. (Lbs.)	39
Warranty	1 Year
Notes	See Support Documents

Support Documents (pdf)

Notes

Questions about this product? Contact our team!
Product images may be generic.
