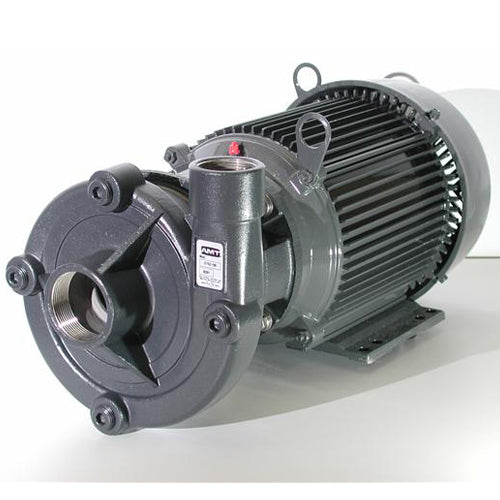

4265-98 AMT Stainless Steel Heavy Duty Straight Centrifugal Pump (10 HP, 230 Volt, 1 Phase, TEFC Enclosure, Viton/SS Seal)
4265-98 AMT Stainless Steel Heavy Duty Straight Centrifugal Pump (10 HP, 230 Volt, 1 Phase, TEFC Enclosure, Viton/SS Seal)
[COUNT] shoppers are looking at this right now
No reviews
SKU:4265-98
Precio habitual
$3,082.00 USD
Precio habitual
$4,623.00 USD
Precio de oferta
$3,082.00 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
AMT 4265-98, 328 Stainless Steel,10 HP, TEFC,230 V, Stainless Steel,Viton/SS
| Applications |
| AMT Heavy Duty Solids Handling End Suction Centrifugal pumps are suited for liquid and chemical transfer, heating and cooling, recirculation, booster service, dirty water and other industrial applications. Stainless steel units are especially effective in applications where rust and/or corrosion can develop in systems. Semi-open impeller features self-cleaning ability that makes the unit useful in applications involving up to 1/8" diameter solids and muddy or dirty liquids, as well as clean, clear fluids. Discharge position can be adjusted in 90 increments with vent and drain plugs for all positions. Type 21 mechanical seal and O-ring casing seal. Pumps are close coupled to Totally Enclosed Fan Cooled (TEFC) motors. |
| Features |
| Stainless Steel Motor Shaft and Hardware |
| NEMA TEFC Single and Three Phase Motors, Depending on Model |
| Optional Mounting Base Available for 182/184/215 JM Frames |
| Self-cleaning Stainless Steel Impeller |
| Optional Seal Wash Port and Hose Available on All Models |
| ** Pumps are not self-priming and require flooded suction. ** |
Specifications | |
Brand |
AMT |
Catalog Number |
4265-98 |
Type |
Heavy Duty Straight Centrifugal Pumps |
Series |
328 Stainless Steel |
HP |
10 |
TYPE |
TEFC |
FRAME |
215JM |
Voltage |
230 |
PHASE |
1 |
Suction |
3" |
| Discharge | 3" |
CONSTRUCTION |
Stainless Steel |
SEAL |
Viton/SS |
SHIP WT (Lbs.) |
200 |
Warranty |
1 Year |
Notes |
See Support Documents |
