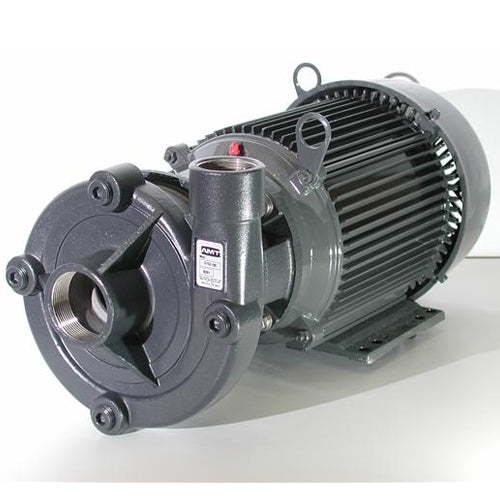

AMT Pumps 4253-98 Heavy Duty Straight Centrifugal SS Pump (10 HP, 230 V, 1 PH)
AMT Pumps 4253-98 Heavy Duty Straight Centrifugal SS Pump (10 HP, 230 V, 1 PH)
SKU:4253-98
Precio habitual
$2,784.42 USD
Precio habitual
$4,288.00 USD
Precio de oferta
$2,784.42 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
No se pudo cargar la disponibilidad de retiro
AMT 4253-98, 330 Stainless Steel,10 HP, TEFC,230 V, Stainless Steel,Viton/SS
| Applications |
| AMT Heavy Duty Solids Handling End Suction Centrifugal pumps are suited for liquid and chemical transfer, heating and cooling, recirculation, booster service, dirty water and other industrial applications. Stainless steel units are especially effective in applications where rust and/or corrosion can develop in systems. Semi-open impeller features self-cleaning ability that makes the unit useful in applications involving up to 1/8" diameter solids and muddy or dirty liquids, as well as clean, clear fluids. Discharge position can be adjusted in 90 increments with vent and drain plugs for all positions. Type 21 mechanical seal and O-ring casing seal. Pumps are close coupled to Totally Enclosed Fan Cooled (TEFC) motors. |
| Features |
| Stainless Steel, Bronze and Cast Bronze Construction |
| Buna-N or Viton Mechanical Seal and O-ring, Depending on Model |
| Optional Silicon Carbide Mechanical Seals Available |
| Stainless Steel Motor Shaft and Hardware |
| NEMA TEFC Single and Three Phase Motors, Depending on Model |
| Optional Mounting Base Available for 182/184/215 JM Frames |
| Self-cleaning Stainless Steel Impeller |
| Maximum Temperature:Viton: 200 F, Buna-N: 180 F |
| Optional Seal Wash Port and Hose Available on All Models |
| Pedestal Version Models Available for Frame Models 145/182/184JM |
| ** Pumps are not self-priming and require flooded suction. ** |
Specifications | |
Brand |
AMT |
Catalog Number |
4253-98 |
Type |
Heavy Duty Straight Centrifugal Pumps |
Series |
330 Stainless Steel |
HP |
10 |
TYPE |
TEFC |
FRAME |
215JM |
Voltage |
230 |
PHASE |
1 |
CONSTRUCTION |
Stainless Steel |
SEAL |
Viton/SS |
SHIP WT (Lbs.) |
198 |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) |
